Specifications
High protection grade
High resolution&brightness
Long lifespan, good after-sales
Competitive price
With CE, ROHS certificate
1. Usage:

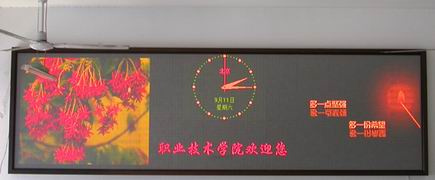

Outdoor dual color LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
2. Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Having larger viewing angle: Horizontal angle 100 degree / elevation angle 45 degree. Getting vivid effect within any position of the viewing range.
4) Any led in each pixel can be respectively repaired, which reduce the cost of the display maitenance.
5) Good heat emission capability
6) Environmental-friendly.
3. Description:
1). Model No.: UVO -PH101R1GKG003
2). Display Color: 320x160mm
3). Led Chips: Opto, Shilan, Nicha, Cree...
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight box, wooden box package
|
Outdoor Dualcolor P10 Led Module Parameter |
|
Dimensions(w*h) |
320mmx160mm |
|
Pixel Pitch(mm) |
10mm |
|
Pixel Configuration |
1R1G |
|
Resolution(W*H) |
32x16 |
|
Pixel Density |
10000Pixels/m 2 |
|
Virtual Pixel Density |
N/A# |
|
Outdoor Dualcolor PLED-P10 LED DISPLAY PARAMETER |
|
Parameter |
Value |
|
Brightness(calibrating value) |
≥5500 |
|
Red Wavelength(dominant) |
623nm±1.5nm |
|
Green Wavelength(dominant) |
525nm±1.5nm |
|
Blue Wavelength(dominant) |
470nm±1.5nm |
|
Brightness(max/min) |
1.1:1 |
|
View Angle (min, 50% brightness) |
Horizontal 120deg Vertical 90deg |
|
Recommended Min. Viewing Distance |
10 |
|
Gray Scale |
256 |
|
Weight |
75kg/ m 2 |
|
Colors Capability |
30bits |
|
Refresh Rate(PAL/NTSC) |
1000HZ |
|
Minimum Frame Rate |
300HZ |
|
Drive Type |
1/4duty, constant current drive |
|
Scan Type |
Static |
|
Control |
Pixel to pixel synchronization or asynchrony display show |
|
Input Voltage |
AC220V/110V(±15%)47-64HZ |
|
Driving Voltage |
5V |
|
Average Power/m 2 |
200W |
|
Max Power/m 2 |
600W |
|
Color Temperature |
Brightness of Red, Green adjustable by the software 100 grade. Color Temperature adjustable according to requirement |
|
Defects Rate |
≤0.00001 |
|
MTBF |
>10,000 hours |
|
Life Span(50% Brightness) |
>100,000 hours |
|
Module Brightness Uniformity |
<5% |
|
Flatness |
±1mm |
|
Ingress Protection |
IP65 |
|
Ventilation |
Quite running fans |
|
Earth Leakage Current |
<2mA |
|
Operating Temperature Range |
-20+60 |
|
Operating Humidity Range |
10%90%RH |
|
Date Transmission |
UTP<100m, Multi-mode Optical Fiber <500m; Single-mode Optical Fiber<5000m |
|
System Operation Platform |
WINDOWS(WIN98, WINXP, WIN2000) |
