Application

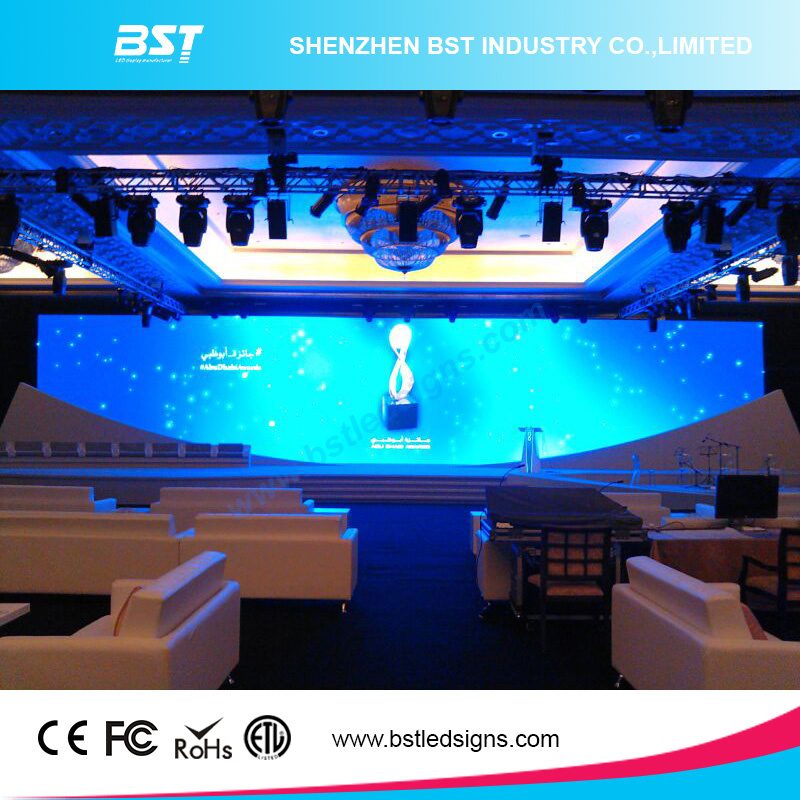

BST SIGN's Indoor fixed installation: indoor public information publishing platform, traffic monitoring scheduling, military command organs, video conference system, TV studio, shopping mall, etc
Features:
1.Low maintenance cost
2.High definition screen, well suitable for monitoring and video conference
3.Quick response, no need to worry about time delay
4.High brightness, screen adjusts automatically
5.Hand shanks on each side for easy lifting and installation of the cabinets
6.Aperture fine-tuning function, seamless splicing
| Model | IS-1.9 |
| Pixel Pitch | 1.9mm |
| Unit Size | 608mmx342mm |
| LED Type | SMD1010 |
| Pixel / Unit | 320*180 |
| Unit Weight | 9.5kg |
| Viewing Angle(H/V) | 140°/140° |
| Application | Storage-40~60°C, Working-20~50°C |
| Protection Level | IP40/IP21 |
| Power Consumption(AVG.) | 700w/m2 |
| Driving | 1/30 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 2500Hz |
| Processing | 16bit |
| Max Brightness | ≤600nits |
| Power Supply | AC 110/220±10%, 50~60Hz |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
