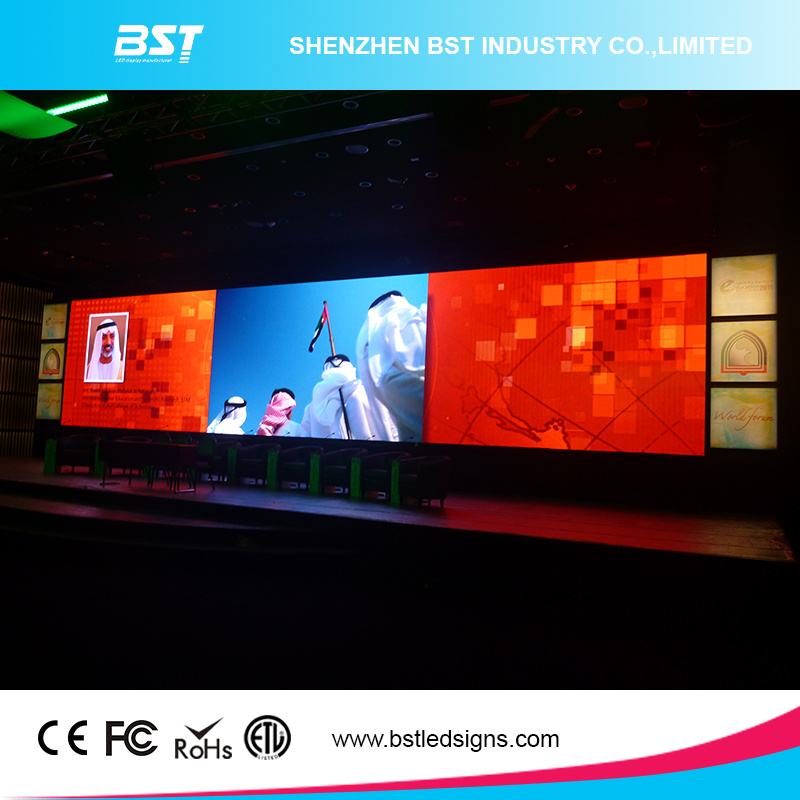

P1.6mm High precision indoor LED Display
Feature1. High resolution and high density led display
2. High uniformity and flatness, ensure picture quality
3. Seamless splicing, ensure picture consistency
4. Extremely close viewing distance and wide viewing angle, upto 140 degree in horizontal and vertical.
5. Quick lock system allowing fast rigging
6. Lightweight, easy transportation.
7. Low power consumption, save energy and running cost.
8. Support many file formats, can play word, excel, PPT, mp4, animation and any other formats.
9. support many signal source.TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.
Specification| Model | 1.6mm | 1.9mm |
| Pixel Pitch | 1.6mm | 1.9mm |
| Unit Size | 516.5mmx435.8mm | 500mmx500mm |
| LED Type | SMD0808 | SMD 3528/black body |
| Pixel / Unit | 322*272 | 128*128 |
| Unit Weight | 10.5kg | 7.5kg |
| Viewing Angle | H140 degree V140 degree | H140 degree V140 degree |
| Application | Storage-40~60° C, Working-20~50° C | Storage-40~60° C, Working-20~50° C |
| Protection Level | For indoor use only | For indoor use only |
| Power Consumption | 750W/sqm | 700W/sqm |
| Driving | 1/30 Scan | 1/30 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz |
| Refresh Rate | >1500Hz | >1500Hz |
| Processing | 16bit | 16bit |
| Brightness | 600nits | 600nits |
| Power Supply | AC110/240V, 50~60Hz | AC110/240V, 50~60Hz |
| MTBF | ≥ 1, 000 Hours | ≥ 1, 000 Hours |
| Life Span | ≥ 50, 000 Hours | ≥ 50, 000 Hours |
| Pixel Failure | < 0.0003 | < 0.0003 |

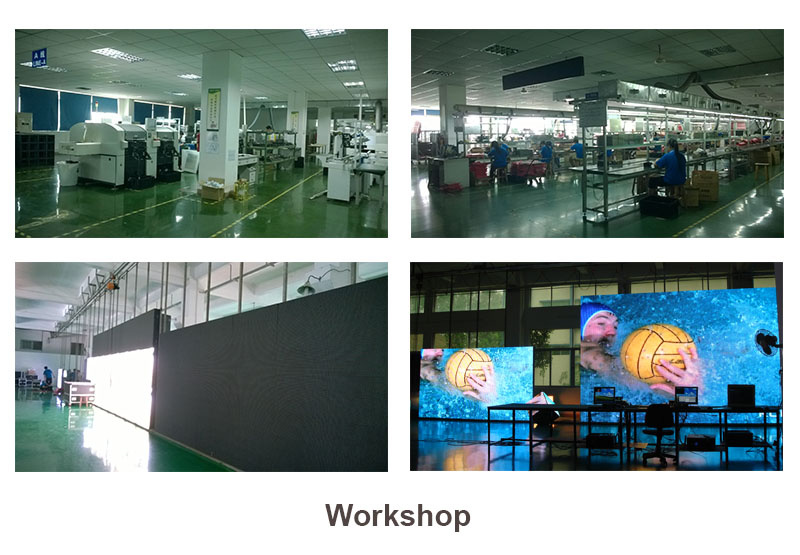

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
