Product Description

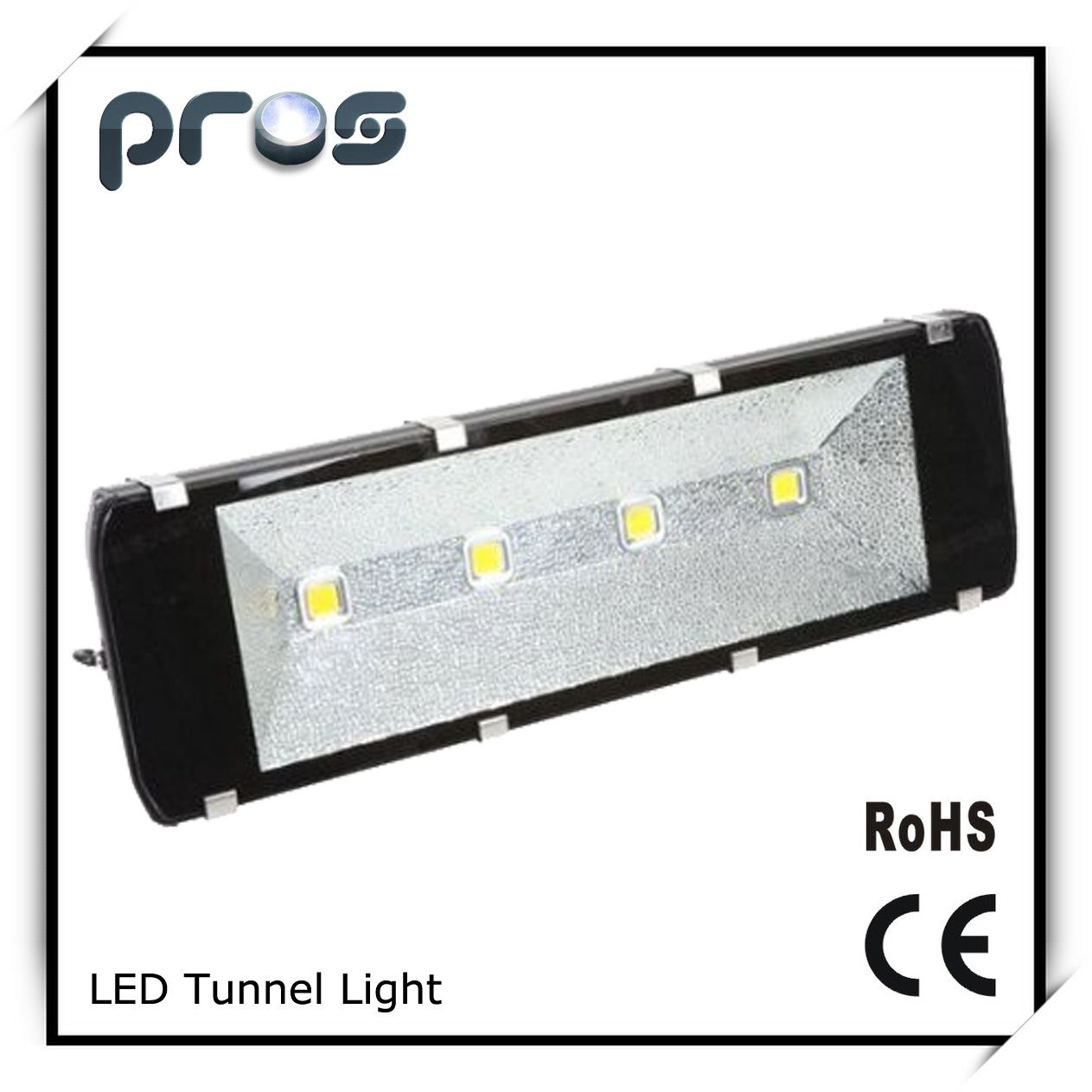

LED tunnel light fixtures
1. Adopting integrated Chip as light source with high lighting efficiency, high CRI(Ra>70), good quality heat dissipation, low light degradation.
2. Aluminium alloy die cast sheel, good strength, high quality heat dissipation. Anti corrosion and baking varnish surface, can be for outdoor using.
3. Make a dedicated luminous intensity distribution design via the aluminium reflector, there are two options for lighting distribution, one is for focusing, another is for divergencing.
4. Wide Input Voltage from 90V~264VAC, constant voltage constant current output, can start up at once, no flicker, PFC function available.
5.100-320W are available
Application:
Buildings, warehouses, street, construction sites, basements, tunnels, stadiums, parking lots, gas stations, billboards, squares, docks, lawn, gardening, design, exhibition hall factory, the factory shops, supermarkets and other light and decorative Lighting situations.
Model | PL-TNL320W |
Dimension | 930*290*110MM |
Voltage | 85-265V AC 50~60Hz |
Power | 320W |
Flux | 25600Lm |
Led | 4Pcs |
Color temperature | 2700-3500K(Warm white) |
4000-5000k(Natural white) |
6000-7000k(White) |
Power Factor | >0.97 |
Beam angle | 120° |
IP rating | IP65 |
Cover | Tempered glass |
Material | Aluminum |
Work efficiency | >85% |
Life span: | 50.000hrs |
Model |
PL-TNL320W |
Dimension |
930*290*110MM |
Voltage |
85-265V AC 50~60Hz |
Power |
320W |
Flux |
25600Lm |
Led |
4Pcs |
Color temperature |
2700-3500K(Warm white) |
4000-5000k(Natural white) |
6000-7000k(White) |
Power Factor |
>0.97 |
Beam angle |
120° |
IP rating |
IP65 |
Cover |
Tempered glass |
Material |
Aluminum |
Work efficiency |
>85% |
Life span: |
50.000hrs
|
