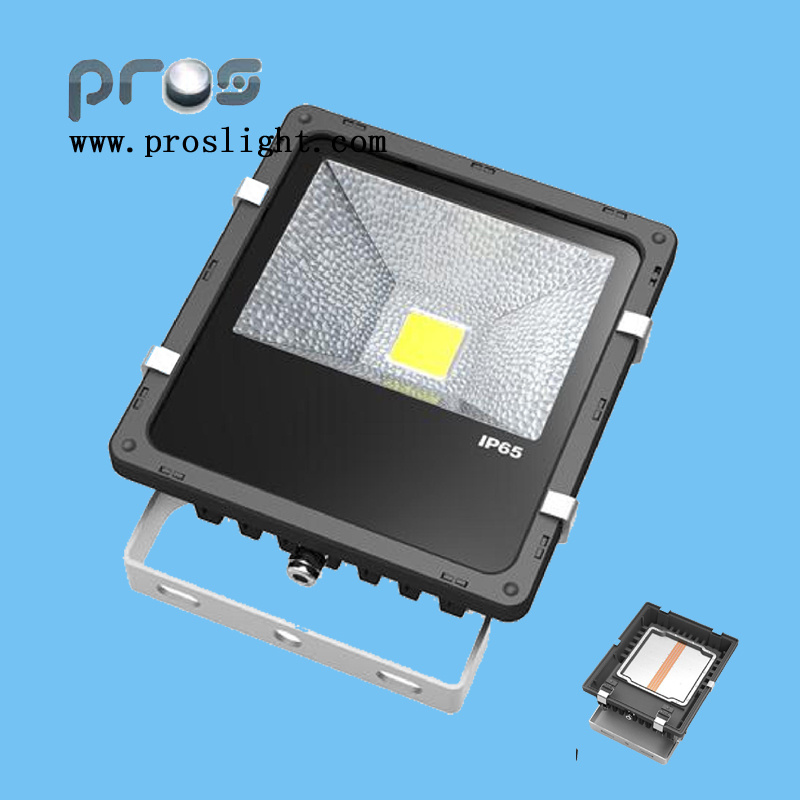

100w led flood light / LED spotlight / 100w led floodlight
Main Features
1. Adjustable projecting direction.
2. Instant on/off, No UV flickering.
3.80% less power consumption than traditional light source.
4. VDE/UL listed rubber cable with cold-pressed terminal
5. Qualified materials i. E. Constant current driver from Meanwell and Brightlux Chip
6. High power LEDs from Bridgelux
7. Built-in cooper heat pipe
Typical Applications
1. Tunnel, Subway, Underground.
2. Gym, Sports Stadium.
3. Building, Billboard.
4. Gas Station, Garage.
5. Park, Garden.
6. Workshop, factory.
7. Warehouse, Storage.
8. Yard, Square.
9. Road, Highway.
10. Station, Dock, Deck, Ship, Boat.
11. Aquarium etc.
LED Flood light Installation instruction:
Step 1: Power must be cut off before installation, it's not allowed to do all this with power on.
Step 2: Put two expansion screws on where required the same size hole what it's indicated in the diagram.
Step 3: Turn up to any beam angle needed by rotating the lamp body.
Step 4: Make connection of Blue with power line, Brown with Null line and yellow green wires with Earth Line, turn it on when it's connected properly.
Item name |
100W led floodlight |
Item No. |
PL-FWL100W-TG |
Input Voltage |
85-265VAC |
Power |
100W |
Power Factor |
>0.95 |
Power Efficiency |
98% |
LED Brand |
Eplaster or Bridgelux LED |
Light Source |
1pc 100W High Power COB LED |
Luminous Flux |
9000lm |
Color |
Warm white ,White |
Housing Material |
Pure Aluminum + tempered glass + ASA frame |
Working Lifetime |
50000h |
Connect wire |
L Power line N Null line G Earth line |
Pcs per carton |
4 |
Carton Size |
73x42x55cm |
