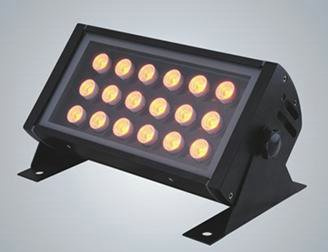

Outdoor spotlight IP65 LED flood light
Specification
1. Power: 18W
2. Input voltage: AC85V-265V
3. Beam angle: 150°
4. Power factor>0.94
5. Power Efficiency>0.83
6. Protection level: IP65
7. Certification: CE/RoHS/IEC
8. Luminous Efficiency: 80LM/W; 90LM/W; 100LM/W, 110LM/W
Feature:
1. Energy cost saving
For its higher luminous efficacy up to 100Lm/w, 60-70% energy cost saving compared to the traditional HPS Lamps.
2. Instant ON/OFF operation
This is one of the superior features of LED lightings. You don't need to wait for any second.
3. Warranty Policy
2 years warranty with original written warranty; 20, 000 switch cycles(on/off switching).
4. Low Light Loss
The light source is the low light loss and high-bright LED, which the loss is less than 5% in 10, 000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slow down light loss.
5. Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Lead and Mercury.
6. High-brightness
Large-size square LED chip, and the light transmittance efficiency of the PC-cover can reach 95%.
7. Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And never contain any hazardous substance, such as Mercury.
8. Anti-vibration
Solid-state, anti-vibration, not easy to be broken.
Our service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. Clients' special requirement accepted. We can help you to design and put into product.
4 Update quotation monthly
5. Protection of your sales area, ideas of design and all your private information.
|
Item No. |
ES-FL003 |
3-Core Cable |
L-Brown |
|
LED Consumption |
20W |
N-Blue |
|
System Consumption |
18W |
G-Yellow/Green |
|
LED Source |
Epistar |
Cable |
3-0.75mm2 |
|
Frequency Range |
50~60Hz |
Beam Angle |
60deg. |
|
Power Factor(PF) |
> 90% |
Working Temperature |
-40~55deg. |
|
Power Efficiency |
> 90% |
Working Humidity |
10%~90% |
|
Total Harmonic Distortion |
< 15% |
Working Life |
> 50, 000 hours |
|
Color Temperature |
2700-7000K |
Shade Material |
Aluminum Alloy |
|
Color Rendering Index(CRI) |
WW> 80Ra; PW, CW> 70Ra |
Fixture Color |
Black or Grey |
|
LED Initial Luminous Efficiency |
100 LM/W |
Packing(2pcs/carton) |
Gross 25kg |
|
LED Working Voltage |
DC30~36V |
73*27*38cm |
|
LED Junction Temp. |
≤ 80 Deg. |
Lead Time |
1 month for 2000pcs |
|
IP Rating |
IP65 |
Warranty |
2 Years |
|
MOQ |
1pc |
Certificates |
CE, RoHS; TUV Driver |
Xiamen Mingyao LED Co., Ltd. located in the south of China, is one of the leading companies specialized in developing, manufacturing and marketing of SMD LEDs, LED lamps and LED.
High power lighting components for the industry. Our production process is managed under ISO 9001: 2008 Standards for which we are certified. For our high power LED packaging, we are holder of the patent.
Our company develops and produces an own series of applications for indoor and outdoor use, such as LED tubes, bulbs and spotlights for interior lighting, flashlights, street lighting, tunnel illumination, garden lights, underwater lights, wall washers, display, hurdle lamps etc.
We offer our customers innovative and high quality components and products, including OEM, at competitive prices and with an excellent service in order to achieve total customer satisfaction.
To learn more about how your company can benefit from our knowledge and production strength, please contact us.
