Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall

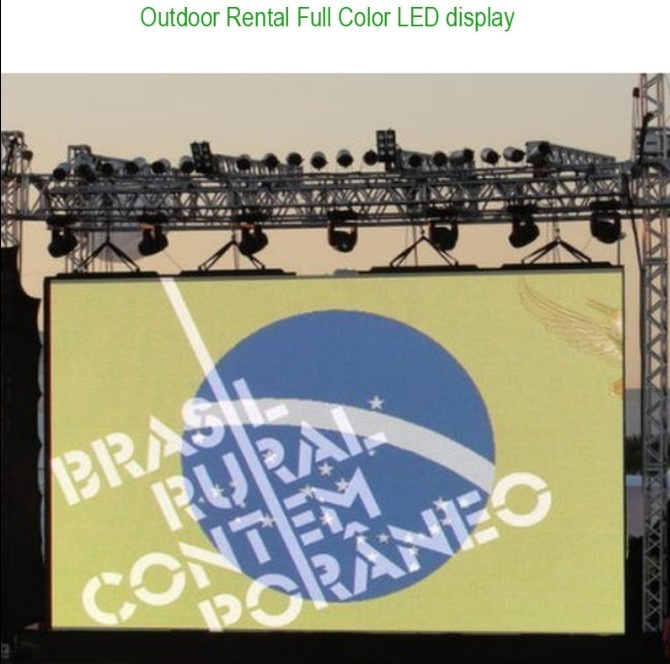

1. Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the special of dampproof, windproof, sunproof, static proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display)
| P10.66 outdoor full-color LED display |
| Item | Details | Parameters |
| Pixel | Physical | 10.66mm |
| Pixel Configuration | 1R1G1B |
| Module | Module resolution | 24*24 pixel |
| Module Size | 256*256 mm |
| Cabinet | Physical resolution | 96*96 pixel H*W |
| Cabinet Size | 1024*1024mm H*W |
| Physical density | 9216 pixels/cabinet |
| Module quantity | 16pcs=4(H)*4(W) |
| Material | steel |
| Weight | 57KGs |
Electricity
parameter | Brightness | 9000 nits |
| Brightness adjusted | 100 grade by software or by Auto-optic induced |
| Color processing | 8 bits (256) |
| Display color | 16 millions |
| Color temperature(k) | 7,200k |
| Physical density | 8800 pixels/per square meter |
| Whole display flatness | ≤ 1mm |
| Best view distance | 6 - 45m |
| View angle | V≥50 degree H≥110 degree |
| Storage temperature | 40 degree -60 degree |
| Working temperature | 20 degree - 60 degree |
| Driving Method | Constant driving current Scan: 1/4 |
| Refresh frequency | up to 3000Hz |
| Frame rate | 25 - 75Hz |
| Humidity(RH) | 10% - 90% |
| Protection grade | Front IP65, Rear IP54 if not specified |
| Working voltage | DC 5V |
| Power supply | AC 110V ±10% / 220V ±10% |
| Average power consumption | 220w/ per square meter |
| Max power consumption | 660w/per square meter |
| MTBF | 10,000 hours |
| Screen lifetime | 100,000 hours |
Control
System | Control System | Linsn |
| Signal Interface | DVI |
| Communication distance | CAT5cable:≤100m Fiber Cable:≥500m |
| Signal transfer mode | dot to dot synchronized with computer monitor |
