Feature of Rental LED Screen
Rental LED Display is mainly used for event, concert, stage background etc, all the features are showed as follows:
Display Image performance
Wide view angle DIP/SMD LED is used for improving the view areas, meanwhile, make the LED Display more smooth.
High brightness and waterproof DIP/SMD LED is used for outdoor, and low brightness SMD LED for indoor.
High conformity of color and brightness makes the color of the display images more vivid.
High contrast ratio and high refresh rate technology makes the LED display performed well without any timelapse.
Each specified LED cabinet can be guaranteed with the same brightness and color in different orders. This calibration technology is helpful for rental companies to extend the display as they like.
Item: BESD-IFP4, BESD-IFP5, BESD-IFP6, BESD-IFP7.62, BESD-IFP8, BESD-IFP10, BESD-OFP10, BESD-OFP12, BESD-OFP12.5, BESD-OFP16, BESD-OFP2O, BESD-OFP25 etc.
Stable control system
Stable control system guarantees the events work well.
Different signal sources input are acceptable, such as TV, HDTV, SVidel, NTSC/PAL, DVI, VGA, SDI and HD-SDI. We supply high definition Video processor to realize the signal source transition.
Controller Cabinet is a protection for easy transportation for rental controller equipments.
Specially designed LED Electrical Control Cabinet, which realizes the power supply for rental events anywhere.

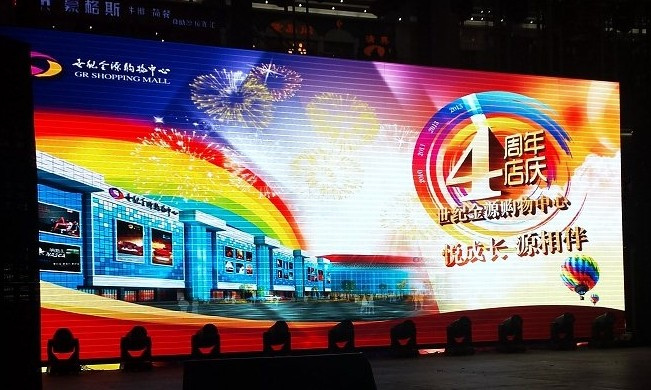

P10.66 outdoor full-color LED display |
Item |
Details |
Parameters |
Pixel |
Physical |
10.66mm |
Pixel Configuration |
1R1G1B |
Module |
Module resolution |
24*24 pixel |
Module Size |
256*256 mm |
Cabinet |
Physical resolution |
96*96 pixel H*W |
Cabinet Size |
1024*1024mm H*W |
Physical density |
9216 pixels/cabinet |
Module quantity |
16pcs=4(H)*4(W) |
Material |
steel |
Weight |
57KGs |
Electricity
parameter |
Brightness |
9000 nits |
Brightness adjusted |
100 grade by software or by Auto-optic induced |
Color processing |
8 bits (256) |
Display color |
16 millions |
Color temperature(k) |
7,200k |
Physical density |
8800 pixels/per square meter |
Whole display flatness |
≤ 1mm |
Best view distance |
6 - 45m |
View angle |
V≥50 degree H≥110 degree |
Storage temperature |
40 degree -60 degree |
Working temperature |
20 degree - 60 degree |
Driving Method |
Constant driving current Scan: 1/4 |
Refresh frequency |
up to 3000Hz |
Frame rate |
25 - 75Hz |
Humidity(RH) |
10% - 90% |
Protection grade |
Front IP65, Rear IP54 if not specified |
Working voltage |
DC 5V |
Power supply |
AC 110V ±10% / 220V ±10% |
Average power consumption |
220w/ per square meter |
Max power consumption |
660w/per square meter |
MTBF |
10,000 hours |
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
Signal Interface |
DVI |
Communication distance |
CAT5cable:≤100m Fiber Cable:≥500m |
Signal transfer mode |
dot to dot synchronized with computer monitor |
