Quick Detail:
1. 140°&140 wide viewing angle;
2. 1280×960 mm cabinet size;
3. 128×96 dots per cabinet;
4. Soft rubber protect.
Detail Description:
This type of P10 perimeter is composed with SND3535 LED chip, more than 6000 nits;
The support at the back is adjustable, to provide different viewing angle to audience;
Each cabinet is with size 1280 by 960 mm, about 80 kg/pc.
Application:

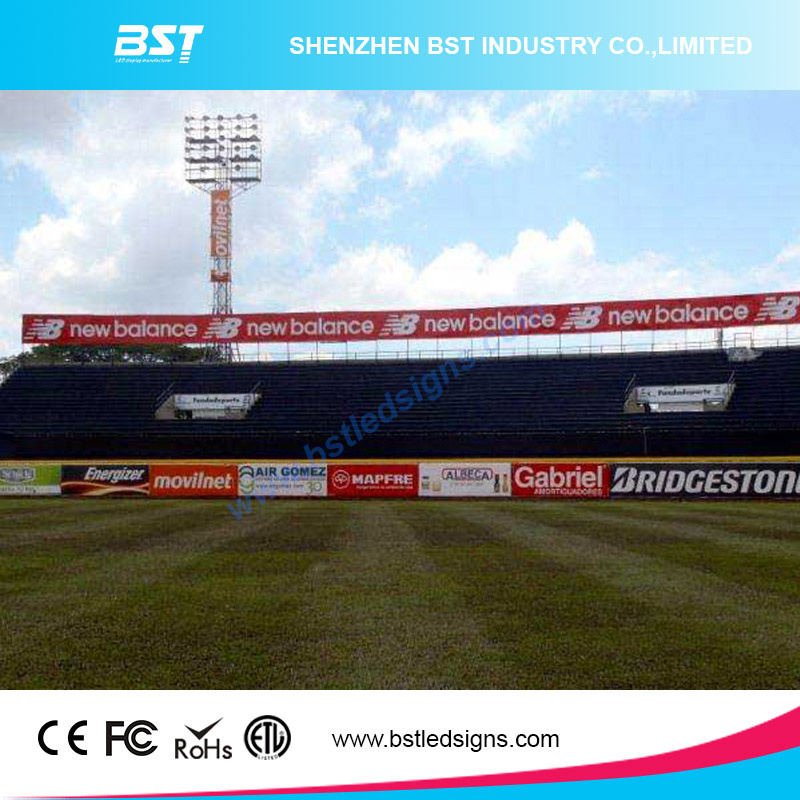

This perimeter LED display is installed around football or soccer stadium to play ads.
Model | BST-ST-10 |
Pixel Pitch | 10mm |
Unit Size | 1280*960*187mm |
LED Type | SMD3535 |
Pixel / Unit | 128*96 |
Unit Weight | 80kg |
Viewing Angle(H/V) | 140°/140° |
Application | Storage-40~60° C, Working-20~50° C |
Protection Level(Front/Rear) | IP65/IP54 |
Power Consumption( AVG.) | 360W |
Driving | 1/4 Scan |
Frame Refresh | ≥ 60Hz |
Data Refresh Rate | >1500Hz |
Processing | 16bit |
Max Brightness | >6000nits |
Power Supply | AC 110/220±10%, 50~60Hz |
MTBF | ≥ 1000 Hours |
Life Span | ≥ 50000 Hours |
Pixel Failure | < 0.0003 |
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
