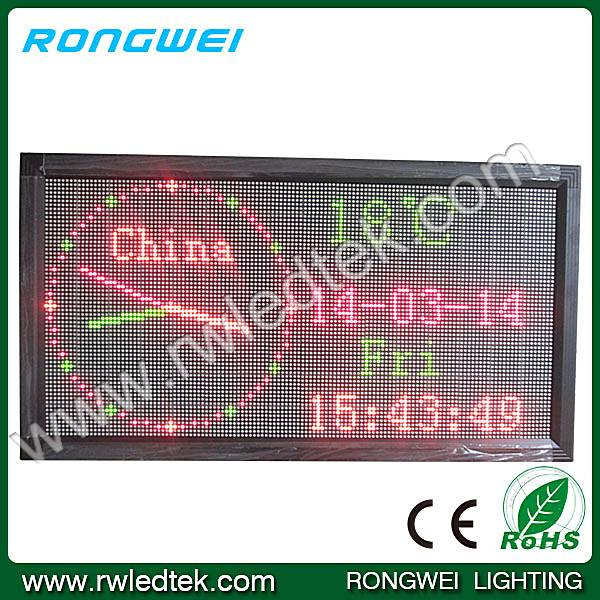

Specification of Led Moving Sign
Pixel pitch: 10mm
Resolution: 10, 000pixels
Module size: 320*160mm
Pixel density: 1W
LED encapsulation: DIP 346
Resolution of module: 16*16
Best viewing distance: 10m
Best viewing angle(H/V): 110degree; /65degree;
Size of standard cabinet: 1280*960mm
Driving IC(5026 optional): MBI5024
Driving method: 1/4 scan constant current
White balance brightness: 6000CD/sqm
Working environment temperature: Temperature is optional
Grey scale: Display colors: 16.7M
Brightness adjustment: 256levels of each color can be adjusted manually, and 8 levels of each color can be adjusted automatically
MTBF: >5000hours
Life span: >100000hours
--------------------------------------------------------------------------------------------------------------------------------------------
Features
1. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3. To pictures and character, have clear, exquisite and real display effect
4. Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5. Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.
Application
1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
--------------------------------------------------------------------------------------------------------------------------------------------
Engineering support
1. Do not put lights into water and place in very wet environment, so as to avoid the leakage or cause damage to the light body.
2. Suitable working temperature environment is -20 ~ 40 degree, the humidity environment is 85%RH-95%RH.
3. If cut the power while thunder will be better
4. Do not touch or beat product while it working.
5. OEM&ODM, any your customized lightings we can help you to design and put into product.
6. If any question about installation or how to use, please read manual or contact us directly
--------------------------------------------------------------------------------------------------------------------------------------------
Remark
1. Warranty: 3 Year
2. Battery and charger warranty: Three months.
3. Certification: CE RoHS
4. Payment: If your order above 1K, you can pay 30% as deposit, 70% must be paid before shipping
5. Product delivery time: Sample: 3days. 100-500PCS: 5-7days. 500-2000PCS: 10-15days.
For any further information about our Led Moving Sign, just be free to contact me.
|
item |
pixels |
sign's size(mm) |
packing size(mm) |
NW(kg) |
GW(kg) |
|
RW-OD-P10-RG-4*3 |
96*16 |
1010*210*90 |
1110*310*190 |
6.4 |
7.4 |
|
RW-OD-P10-RG-4*4 |
96*32 |
1050*410*90 |
1150*510*190 |
11.2 |
13.5 |
|
RW-OD-P10-RG-5*3 |
128*16 |
1330*210*90 |
1430*310*190 |
8.4 |
10 |
|
RW-OD-P10-RG-5*4 |
128*32 |
1370*410*90 |
1470*510*190 |
14.8 |
17.7 |
