Outdoor P10 Full Color LED Module Advertising LED Display
| Price: |
US $ 1134/Square Meter |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
5/Square Meter |
| Pay Type: |
T/T,Western Union |

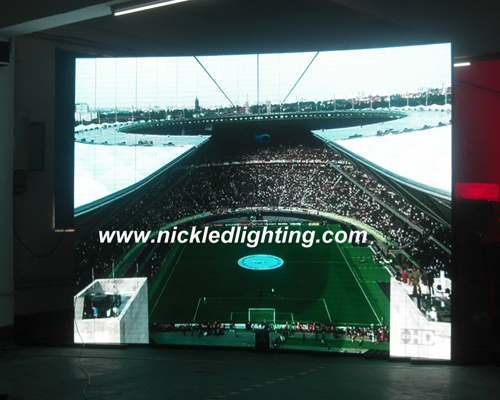

Indoor & Outdoor Full Color LED Display Modules, LED Screen outdoor, usually used for Plaza, shopping mall, street side, high way, school, stadium, shows, entertaiments etc different commerical advertising
1. Focus on and only focus on LED display and modules more than 13 years
2. Customized LED Display and modules in irregular size and specifications, such as bus sign
3. 1R1G1B or 2R1G1B as one pixel with top LED such as Silan, CREE etc
4. 16x16 or 32x32 pixels each module, bigger modules, more flatness of screen surface
5. Best Color Uniformity and white balance, color vividly, strong visual impact
6. Good heat dissipation, anti-shock with multi-layers PCB design
7. Constant current and static driver manner with longer life, low light decay
8. High brightness can arrive 8000CD/SQM
9. On line free training for how to asemble LED display modules to cabinets, cabinets to screens,
How to operate software, how to maintain etc

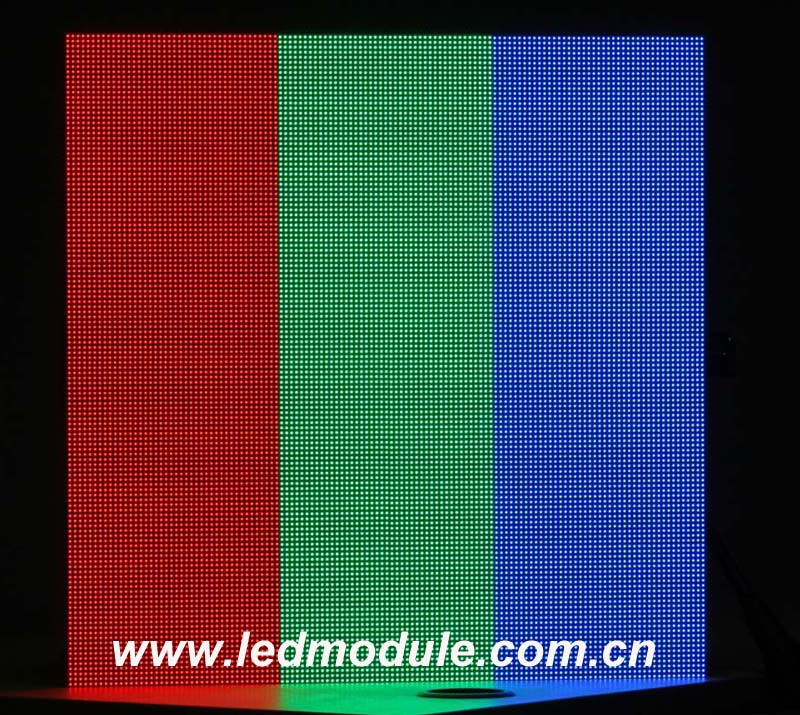

NK Outdoor RGB P10 LED Modules
|
LED
|
1R1B1G
|
Brightness
|
≥7500cd/m2
|
Pitch
|
P10mm
|
Module size
|
320x320mm
|
Module pixel
|
32x32pixels
|
Brightness adjustment
|
256 level manual; 16level automatically
|
Module resolution
|
1024pixels
|
Control mode
|
Synchronous by internet
|
Frame
|
60 frame/S
|
Refresh rate
|
300-3000HZ(no flickering)
|
Drive mode
|
1 /4 scan
|
Gray scale
|
16384 level for each color
|
Watt
|
350w-1050 w/M2
|
Color displaying
|
4.4trillion
|
Working voltage
|
100v-260v, 50/60HZ
|
Viewing angle
|
Horizontal:120°, vertical:60°
|
Working temperature
|
-20ºC---+50ºC
|
Storage temperature
|
-40ºC---+60
|
Working humidity
|
10%-90%
|
IP rate
|
IP65
|
Service Life
|
≥100.000H
|
Defect rate
|
≤0.001
|
| Prod Model: |
NK-P10-SMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| P10 Full Color LED Module: |
320*320mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
10mm |
| Certification: |
RoHS |
| Pixel Density: |
10,000 dots / m² |
| System Operating Platform: |
WIN XP |
| IP Rating: |
IP65 |
What is Nick meaning?
Nick name from the RED LED inventor Nick Holonyak Jr, he is not only one research scholar, but also one moral sense scientist, cultivate many electronics talents, promote and facilitate LED industry development, as one beneficiary of this invention and responsible enterprise, Nick Optoelectronics company will continue following the LED way to push forward LED application industry development, let more and more family using energy saving LED lighting, keep the green earth!
Why you choose Nick,
Shenzhen Nick Optoelectronic Technology Co., Ltd established in August 2008 year, consist of one experienced professionals and strong executive team, among our core technicians average LED trade research and production experience more than 15years, speciality and quality is our development foundation, we are the first factory to put forward wholesale LED materials to the world, "Nick for you saving every penny! " is our company motto, high cost performance is our product target, we give more profit shares to distributors and end users, to implement our win-win value, we welcome tailor made LED products, we can design and produce according to customers' Requirements, at the same time, after long time cooperation and good reputation, Nick with many suppliers together formed one excellent and mature supply chain, fully practice resource sharing, complementary advantage, efficient operation spirit among modern enterprises.
Nick Products oriented LED Display and LED Display Modules, LED Display wholesale, one color/two color/RGB color LED Display modules wholesale, Message LED signs wholesale, LED Controller wholesale etc, with high power efficiency, long life, stability, energy saving, splendid, colorful, environment friendly, widely application features and high cost performance, are more and more popular with Customers both domestic and overseas market.
Nick LED Products can be used indoor and outdoor, advertising and daily life, family party and big events celebration different occasions for different themes, now our products has been exported to different countries, such as Korea, Indonesia, Malaysia, Thailand, Japan, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Belgian, Finland, France, Portugal, Poland, Romania, Spain, USA, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
ISO9001, ISO14000, TS16949 international quality control system
Nick target is to offer high cost performance LED products to customers, so during material purchasing stage, product-making stage, product finished stage, all is to be controlled under
IQC, IPQC, FQC respectively, we strictly follow ISO9001, ISO14000, TS16949 international management rules to guide production, and tested by special tools such as low-high temperature transmit instrument, integrating sphere instrument, LED spectrophotocolormeter instrument, all have to be tested and aging 48hours in high temperature, after products finished, also have to be aging 48hours again in high temperature, most our products have CE, RoHS, FCC Certificates,
Strong and fast after service
Fast, efficient, convenient is Nick after service team target, from online communication or telephone to provide solution fast within one day, our after service line is open 24hoursx7days, at the same time, our experienced technical experts will provide strong support to customers,
As one responsible enterprise, Nick consistently stick to benefit people with green energy, welcome you to enjoy this warm with us together!
