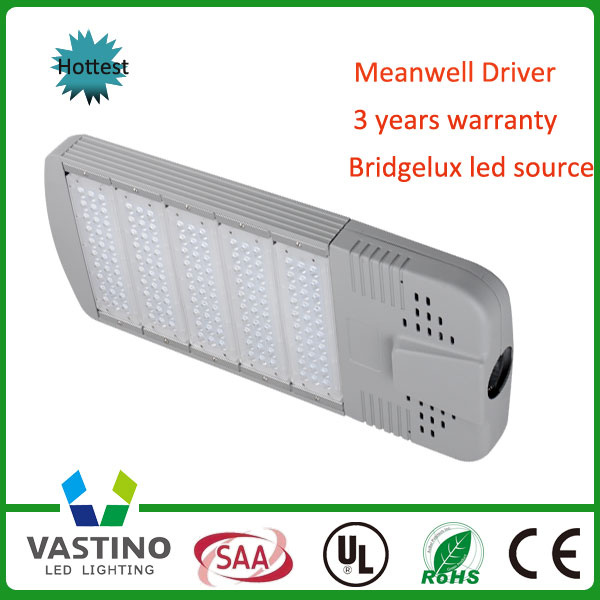

Dustproof Waterproof IP65 High Power Factor LED street light
Basic Data:
1.Product Name:
2. Item no:YSST-003
3. Main materail: Aluminium+PC
4. Certificatie:CE ROHS
LED:
1.LED Brand:Epistar/Cree/Base on requirement
2.LED type:high power
3.LED Working Volatge:AC100-240V
Electrical Data:
1.Rated Frequency:50/60Hz
2.Nominal Wattage:120W
3.Lamp Efficency:≥89%
4.Power factor: ≥ 0.95
Techiniacal Data:
1.Color termperature:WW/NW/PW
2. IP Grade:IP65
3.Beam Angle: 90*135°
4.Color Rendering Index: ≥ 65
Optical Parameter
Model No. |
YSST-003 |
Led Source |
30Pcs High power/Module(Bridgelux) |
Power |
100/120/150/180W |
Lumens |
12000lm±10%/120W
14800lm±10%/150W |
Input Voltage |
AC100-240V |
Color Temp. |
WW 2800-3000K
NW 4000-4500K
PW 6000-6500K |
Beam Angle |
90*135° |
Mechanical Parameter
CRI |
Ra≥65 |
Power Factor |
>0.95 |
Material |
Aluminum+PC |
Color of Shell |
Grey |
IP Grade |
IP65 |
Lamp Efficiency |
≥89% |
Adaptable Environment |
-20°C to +55°C |
Lamp Working Temp. |
≤65°C |
Packing Info.
Lamp Size |
L615*W315*H90mm/3 Module
L700*W315*H90mm/4 Module |
Installation Dimension |
D65mm |
Net Weight |
9.56Kg/3 Module
10.5Kg/4 Module |
Carton/PCS |
1PCS |
Carton Size |
W330*L720*H130mm/3 Module
W330*L800*H130mm/4 Module |
Carton Weight |
11Kg/3 Module
12Kg/4 Module |
Application:
1.Highway,bridge,park
2. outdoor street
3. Hig lumens Excellent energy saving
