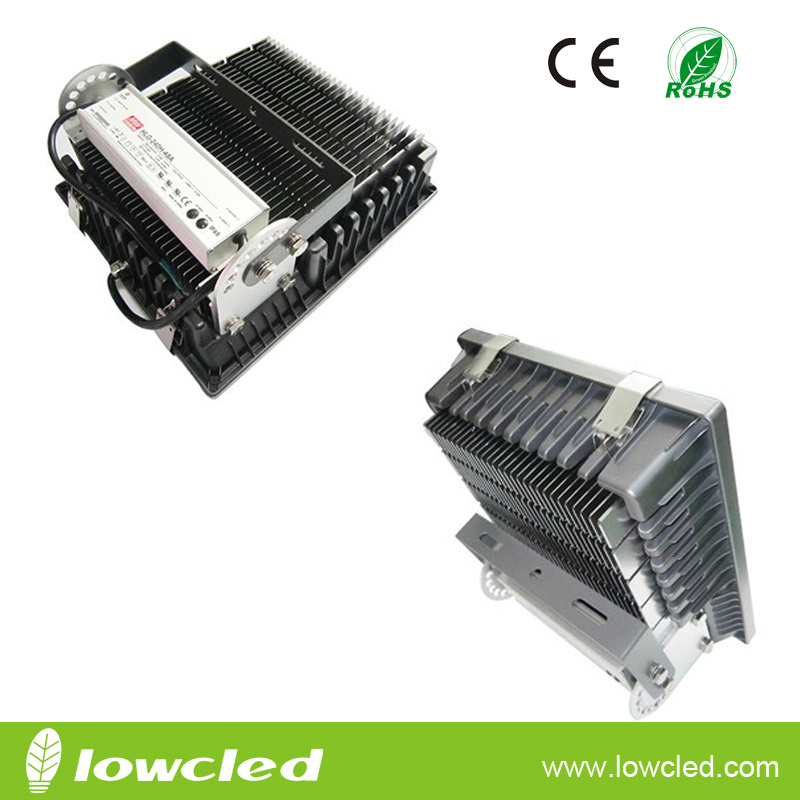

LOWCLED Flood Lihgt Characteristics
1. Adopting Super Brightness original CREE High Power LED Lighting Source. Long lifespan, Energy saving, Environment friendly, High efficiency, No strobe, No ghosting, No UV or IR.
2. Using high quality ASA industrial plastic shell outline for perfect lower and high temperature resistance.
3. High efficiency Driver and very professional design, making the surface temperature of the light body below 60centidegree. The life span for the driver is over 30000 hours.
4. Wide range for the Input Voltage, saying AC85V-265V/277V/305V/DC10-28V, can be used globally. Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.
5. Automatically reduce current against overheating temperature.
6. More aluminium heat sink cooling fins with best heat dissipation for guarantee longer lifespan of leds.
7. Water-proof design (IP65).
8. More than 70% energy saving.
Application
LED Flood Light is widely used at building, factory, storage room, public parking lot, exhibition building, domestic block, gymnasium, gas station, Square, advertise, Lawn, Super market Wharf, Garden and other lighting places.
|
Model No. |
LL-FL-230W-4F |
|
Equivalent |
700-1000W High Pressure Sodium Lamp/metal halogen lamp |
|
LED Light Source |
196 CREE LED |
|
LED Luminous Efficiency |
>130 lm/w (350mA/3V CREE XPE-R3 CW) |
|
The Power Consumption of Power: |
24W |
|
Lamp Total Power |
230W |
|
Power Efficiency |
>95% |
|
LED Initial Flux |
>25480lm (350mA/3V CREE XPE-R3 CW) |
|
Lamp Rated Luminous Flux |
>23000lm (350mA/3V CREE XPE-R3 CW) |
|
Lamp Rated Luminous Efficiency |
>100 lm/W |
|
Color Rendering Index(CRI) |
Ra>75 (upgradeable to Ra90) |
|
Color Temperature |
Cool white: 5000K-8000K
Pure white: 3500K-5000K
Warm white: 2600K-3500K |
|
Beam Angle |
120° |
|
Light Distribution Curve(Beam Pattern) |
Symmetric (Rectangular Beam) |
|
Input Voltage |
AC 90-305V ( TAIWAN MEAN WELL LED Driver UL /CB/PSE) |
|
Frequency Range |
47-63Hz |
|
Power Factor(PF) |
0.95-0.99 |
|
Total Harmonic Distortion(THD) |
< 10% |
|
Storage Temperature |
-40Centi-degree--+80Centi-degree |
|
Working Environment |
-40Centi-degree--+50Centi-degree; 10%-95%RH |
|
Junction Temperature(Tj) |
60Centi-degree± 10%(ta=25Centi-degree) |
|
Light Body and Lampshade Material |
Aluminum Alloy and ASA / PC |
|
Working Lifetime |
> 50,000hrs |
|
IP Rating |
IP65 |
|
Net Weight |
8.3kg |
|
Gross Weight |
9.3kg |
|
Product Size (cm) |
40×34×12.1cm |
|
Package Size(cm) |
47.5*42.5*27CM/pcs 49*44*58CM/2 pcs |
