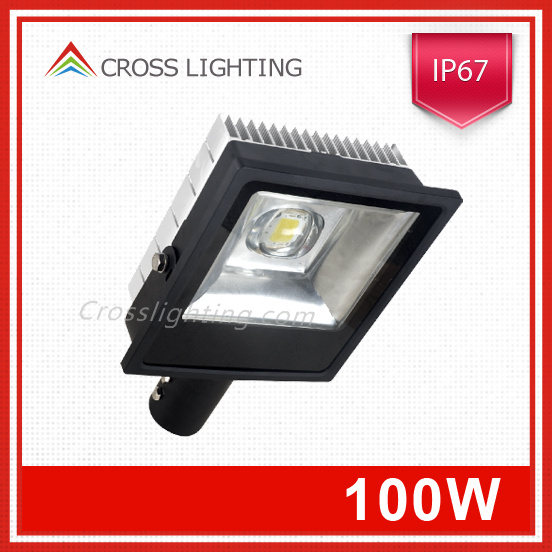

Outdoor Light IP67 100W LED Street Light
100W LED street light is made from aviation aluminum heat dissipation, high strength and die cast aluminium casing,toughened glass, high reflective aluminum and other high quality material assembly LED floodlights.
About "Crosslighting" Brand
1>.China First Brand of energy saving of lighting solutions .
2>.25 years manufacturing experience of lighting since 1989.
3>.Global Professional Supplier of LED Lighting Solution..
4>.All products have CE .UL.CQCcertificate.
5>.Export to European and American,Oceania,Southeast Asian,Afica countries.
Own R&D team.
6>.High quality and competive price for OEM&ODM .
7>3 years warrenty,buy with confidence
Global Hot Sale Line:860 20-39992210
24H Online Skype for FREE Sample: live:fy2014lee
Thanks for your time!
We look forward to establishing good business relationship with you for our mutual benefit in the nearest future!
|
Electrical parameters |
|
Input Voltage(AC,V) |
100-240 V |
|
Input current |
- mA |
|
Frequency |
50/60Hz |
|
Light modulation(yes/no) |
no |
|
Power Consumption, Psystem |
100 W |
|
Power factor |
≥0.9 |
|
Output Voltage(DC) |
28-43 V |
|
Output current |
300 mA |
|
Optical parameters |
|
CCT |
Luminous Flux |
Color Rendering Index (CRI) |
Luminous Efficiency |
Beam Spread Angle |
H/3m Beam Spread Area |
|
|
|
2700K~3200K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
3800K~4300K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
5500K~6500K |
≥9500Lm |
≥70 |
≥95Lm/W |
|
- m |
|
|
|
65*135° |
|
Notes: Tolerance of Lumen:±10% |
|
Structure parameter |
|
Lamp material |
aluminum alloy |
|
Lampshade material |
tempered glass |
|
Outline Dimensions (L×W×H) |
176*166*57mm |
|
IP Grade |
IP 67 |
|
Installation mode |
fixed/caliber 40-60mm |
|
N.W. (Kg) |
4.5Kg |
|
One piece per package(L×W×H) |
415*265*138mm |
|
G.W.(Kg) |
5.2 Kg |
|
Manner of packing (L×W×H) |
as per request |
Guangzhou Crosslighting Co.Ltd is established on the basis of Poinmark Lighting (founded in 1989) which is professional manufacture of LED flood light, LED high bay light, LED street light, we have all kinds of product, reliable product quality, advanced production equipment, sophisticated detection equipment.Comprehensive technology, also have the design of electronic circuit, heat radiation, optics, and the waterproof of outdoor lights.We adopt the project of Sanken and Xiantong for Our Electronic circuit, using A6063 aluminum to heat radiation which heat transfer coefficient can reach 209W/M-K, waterproof using suction principle, can reach IP67 on the premise that only use sealing ring without glue.The two light distribution can be done well as per request by ourselves.Our major business is exporting.
