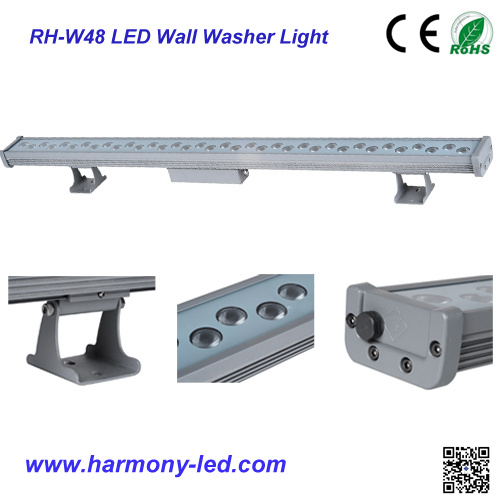

Outdoor LED Wall Washer Lighting Kits
Applications:
1. Ceiling, wall cover
2. Cabinet and under counter lighting
3. Shelf lighting
4. Exhibition stands and panels
5. Architectural, building lighting
6. Step lighting
7. Back lighting
8. Back lit signs light boxes
9. Indoor and outdoor any place lighting
Features:
| waterproof structure: | the gap between the plate and the leds is filled with epoxy evenly., then waterproof is much better. |
| Control mode: | DMX512 external control/internal control/infrared remote control |
| Crescent stand: | Easy to install and configure |
| Face cover: | High quality acrylic cover. |
| Shading plate | Shading plate for selection, print the logo at ease on the glass |
Specification:
| Model | RH-W48 |
| Specifications | Size(mm) | L1000*W70*H90MM | LED Brand : | Epistar / Bridgelux /Edison /CREE for option. |
| Power (W) : | 36*1W | Beam Angle: | waterproof lens 30/45/60/90Degrees /10*45/10*60/20*50 Degrees |
| Input voltage: | AC85-265VDC24V | Working Temperature: | -40degrees- + 85degrees |
| Power Factor : | More than 0.95 | Material: | Aluminum +Tempered glass |
| Efficacy: | 80-110LM/W (W) . | Packing: | 107*21*31cm /6pcs,neutral packaging |
| CRI: | More than 85% | Loading Qty: | 1800pcs / 20`GP |
| LED color: | W/WW/R/G/B/Y/RGB | Delivery Time: | 15 days after payment for 20`GP |
| CCT: | 2700-6500K | IP Rating : | IP65 |
Remarks:
1)LED Wall Washer should be used in accordance the environment requirement
2)DMX512 control system:
A: 1PCS DMX control could work 170pcs led light , all the light is same effect at the same time .
B: Automatic set the address code.
C: Double signal cables(3 cores),double power cables (2 cores).Female and Male connection.
D. The led light more than 30M, need to signal amplifier .
E: The input and output port should meet the requirements, otherwise it will damage lighting.
Harmony's main products:
LED wall washer light,led module light,LED flood light, LED projector light;
Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lighting we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price.
Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product ,outer carton size:104*19*32cm/10pcs.
Trade Terms:
1. Payment:PAYPAL,Western Union,T/T:30% deposit + 70% balance before shipment .
3. Samples can be available within 3-5 working days
4. Shipping freight is quoted under your requests
5. Shipping port: Shenzhen/Guangzhou/Jiangmen , China mainland
6. Discounts are offered based on order quantities
7. MOQ: 100pcs
Delivery:
3-9workdays for 1000-3000PCS after deposit, 1-3days for sample
Jiangmen Harmony Ligthting Co., Ltd, an enterprise of a professional LED lighting manufacturer and exporter in China, integrates research, development, production, sales and service of LED lighting products with high efficiency, energy saving, long life, stability, colorful and environment friendly features in Jiangmen of China.
It is located in LED Hi-tech zone of Jiangmen with a production area of 8, 000 square meters.
Since 2006, Harmony Lighting has been sticking to the spirit of continual progress, is committed to the marketing concept of "high qualify for products and good credit for business", and carries out the quality objective of "quality first, outstanding credit, whole-hearted service and customer satisfaction" to expand market and perfect after-sales service system! We engage in offering the most sincere "One-Stop Service", the best quality products, strong technical support and all-around after-sale support.
There is strict control on product quality by skilled IQC, IPQC and FQC in "Harmony Lighting" strictly according to ISO9001 international quality control system operation. Most of our LED lighting products have CE, RoHS, CCC, ISO9001 certificates.
We put forward a principle: "Quality-oriented, Honest Integrity, Continuous Development and Customer Satisfaction". Our excellent reputation for service, delivery and technical support has developed through years of experience in the LED lighting application field.
