FOCUS SIGNS OUTDOOR FREE STANDING SCROLLING LIGHT BOX SPECIFICATION
1. Light box shell material: 13/13.8 / 25 CM thickness aluminum alloy, black
2. Light box face-plate material: 6MM organic glass, Kodak black window HORI
3. Light box back- plate material: 4MM aluminum composite sheet ( ACP)
4. Light box illuminating system: T4, T5 sunlight tube, 20W or rolled -up SMD LED
5. Light box scrolling system: Intelligent 1-55integration picture replacement system, 30W direct brush motor, double sided.
6. Light box safe electrical appliance: Electric leakage protector and timing ON OFF, lighting timing ON OFF function device. Face-plate up-down open style, supported with gas-assisted spring.
I-55Intelligent integration scrolling system function
CONFIGURE
1. Patent structure technology
2. Auto search picture quantities auto precise locate convenience for install
3. Unique mechanism journey protection. Prevent picture from falling off. Auto power ON OFF, Auto Lighting ON OFF
4. Intelligent controlling program protection
5. Professional parameter controlling setting board
6. Parameter setting device
7. Different time adjustment of different pictures
8. Adjustment of running speed
9. Holding time of each picture randomly setting
10. Randomly picture quantitative display setting
11. The quantities of displaying picture reach to 6-8 or more. Different motor synchronize on-line running. Power failure reset function
12. Displaying failure protection and maintenance message
13. Integration digital scrolling system, build-in motor...No necessary keypunching. Auto picture install allocation setting
ITEM NAME |

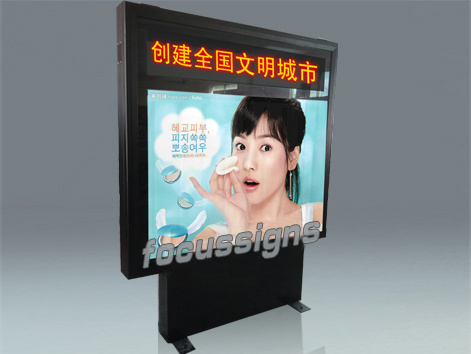

Outdoor free standing scrolling light box FS-S062 |
MATERIAL |
Frame : |
Power coated treatment aluminum frame |
Front Panel : |
6mm thick organic glass ( acrylic sheet ) or PC sheet |
Back panel |
4mm ACP sheet |
Light source : |
T4 / T5 tube or rolled up SMD LED strips |
Adapter : |
CE approved |
Scrolling system |
CE approved |
Picture scrolling |
2-6 pictures one by one |
Characteristic |
Patent designed outdoor used ,double sided |
Output |
2500-3500 LUX ( Max. 8000 LUX) |
Voltage |
AC220V 50/60HZ |
Power consumption |
10-20W per square meter |
Life span |
More than 50,000 hours |
Frame colour |
Silver ,black , other RAL colours are available |
Opening way |
Lockable |
Certification |
CE, RoHs , UL |
Installation |
Free standing with a steel stand |
Size |
1200*2000mm as standard ,other size can be customized |
Package |
Air bubble bag + protective foam sheet + individual carton + poly wood case |
Application |
Gas station ,railway station ,bus station ,high way , supermarket ,shopping mall, etc. |
Guarantee |
24 months |
Focus Signs Industry Co., Ltd (Huiling Advertising ) established in 2003, is a leading manufacturer in indoor & outdoor illuminated sign / signage, poster stand, snap frame.
Our main markets in Middle East, Europe, South Asia and some countries in Africa.
As an original factory, competitive price and good quality price will be offered, we have a strong team in tech. Reseaching, sales, production and after-sales service.
Huiling Focus Signs people just here for you.
