Outdoor LED Par Stage Light, LED Par, Outdoor LED Par Light, 5in1 LED Par
1. Product Parameter
1. Lamp Type: High Power LED(10W)
2. Lamp Spec: 5-in-1 10W(12PCS)
3. Constant current driver: 500MA
4. PWM Dimmer: >400HZ
5. Life span: 50000-100000hours
6. Control Signal: DMX512, master and slave
7. Control mode: stand alone/ DMX/ master and slave
8. Channel: 4CH, 5CH, 9CH, 10CH
9. Color effect: R, G, B, A, W, Mixing
10.Cooling mode: natural cooling
11. Anti-electricity intension: 1.5KV
12. Insulation Resistance: >2MΩ
13.Size: 284*192*254mm
2. Products introduction
LED PF1012 uses aluminum die-casting shell. The light source adopts high power 5-in-1 LED, which refers to single LED is made of R,G,B,A,W LED. Long life span, low consumption, good color mixing effect and high brightness are the most prominent features. Each kind of LED can be independently dimmed. The built-in program includes dimming, strobe, eotic, gradual change, fading and so on. It uses power switch, performs low weight and consumption, stable capability and long life. International standard DMX 512 signal is requested.
3. Safety instruction
Make sure the power supply voltage are consistent with this lights,Ensure the use of voltage is in the range of the request technical parameter.
Before the installation, please check the light's fasteners and mechanical structure have been received in good condition and appear no damage.
This light is designed for indoor use; working temperature is lower than 50 degree.
The fixtures maybe mounted in any position provided there is adequate room for ventilation. Make sure there are no inflammable and explosive items (ornaments) in 0.5 meters away.
Yellow / green cabling earthling safety; no flicker when the fixture is working on.

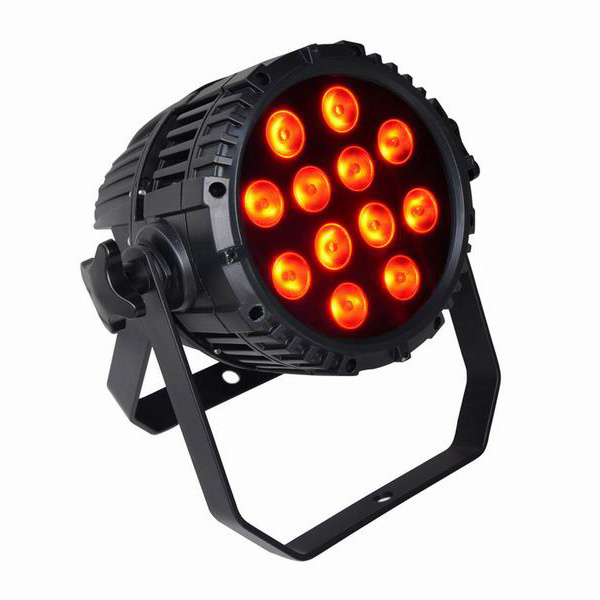

4. Product Pictures
Product |
Outdoor LED Par |
Led |
RGBAW 5IN1 |
Waterproof |
IP65 |
LED Qty |
12 pcs |
LED Watt |
10W |
Guangzhou Daisy Electronic & Technology Co., Ltd. is a high-tech manufacturer in LED stage lighting equipment and illumination products. Nowadays, we have nearly 10, 000 square meters standard workshop and about 200 employees, 1/4 of them are R&D engineers and technicians. "DAISEYA" is our own brand.
The main LED stage lighting products we provide include LED PAR can light, LED bar light, LED wall washer light, DMX LED tube, LED curtain, LED moving head light, LED dancing floor, LED DJ effect light, audience light, LED day light, LED panel, and DMX controller, etc.
Daisy Lighting is being used at the 2010 World Expo in Shanghai. Meanwhile, 90% of our products have been exported to more than 80 countries in the world. Daisy Lighting has been highly praised by our partners all over the world after years of continual development. Daisy Lighting also holds certificates such as ISO9001, Chinese Export License, CE, RoHS. Quality of our products has reached international advanced level.
Talent is the survival and development of an enterprise. In order to keep the high competive in the international market, Daisy Lighting actively absorbs and innovates international advanced technology by means of talent accumulation and technological advantages in R&D. Daisy Lighting constantly develops new products every month.
Daisy Lighting taking "Honest, Innovative, Pragmatic and High-efficient" as the purpose to provide the most professional LED products to all our partners.
