Advantage:
1. Waterproof IP65, Using in professional stage/ studio/ theatre/ dyeing effect
2. 18pcs RGBW 4in1/5in1/6in1 LEDs
3. Color infinite mixing, perfect wash effect

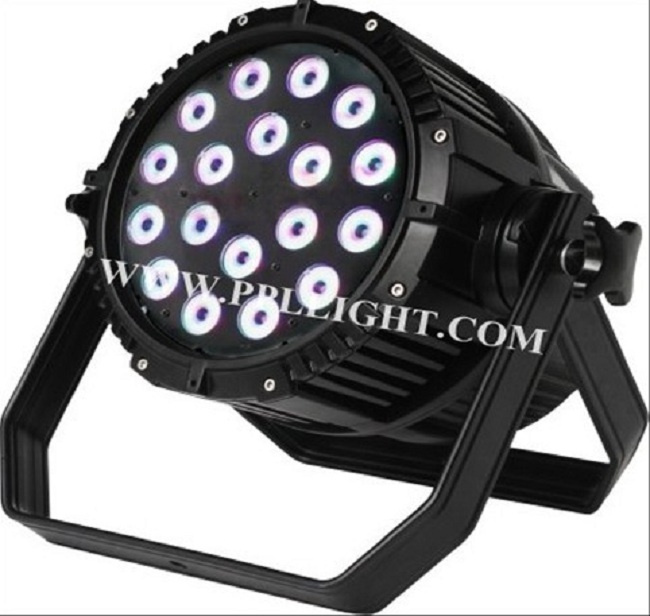

18pcs LED par light outdoor
Voltage: AC90-245V, 50-60Hz
Power: 180W
Lamp: 18*10W RGBW/RGBWA/RGBWA+UV
Beam angle: 25° As fitted, 15° , 30° , 45° , 60° Optional
Life time: 100 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, sound active
Channel: 8Ch
Display board: Digital LCD display
Housing material and color: Aluminum, black
Max ambient temp: 45 degree
Waterproof rate: IP65,
Used in professional stage studio theatre dyeling effects
Packing sizie: 320*300*380mm
N/G. W: 8.8/9.6kgs
DMX Channel:
DMX 8H Mode Channel |
Channel | number | Function Description |
CH 1 | 0 | General Dimmer |
| 1-255 | R.G.B.W General Linear Dimmer from dark to bright |
CH 2 | 0 | General Strobe |
| 1-255 | R.G.B.W General Strobe from Slow to fast |
CH 3 | 0 | Function of selection |
| 1-50 | Mode of DMX 8CH |
| 51-100 | Mode of colorful change |
| 101-150 | Mode of gradient change |
| 151-200 | Mode of pulse variable change |
| 201-255 | Mode of Sound Activation |
CH 4 | 0 | Speed |
| 1-255 | Speed ,from slow to fast |
CH 5 | 0-255 | Red linear dimmer ,from dark to bright |
CH6 | 0-255 | Green Linear Dimmer ,from dark to bright |
CH7 | 0-255 | Blue Linear Dimmer ,from dark to bright |
CH8 | 0-255 | White Linear Dimmer ,from dark to bright |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
