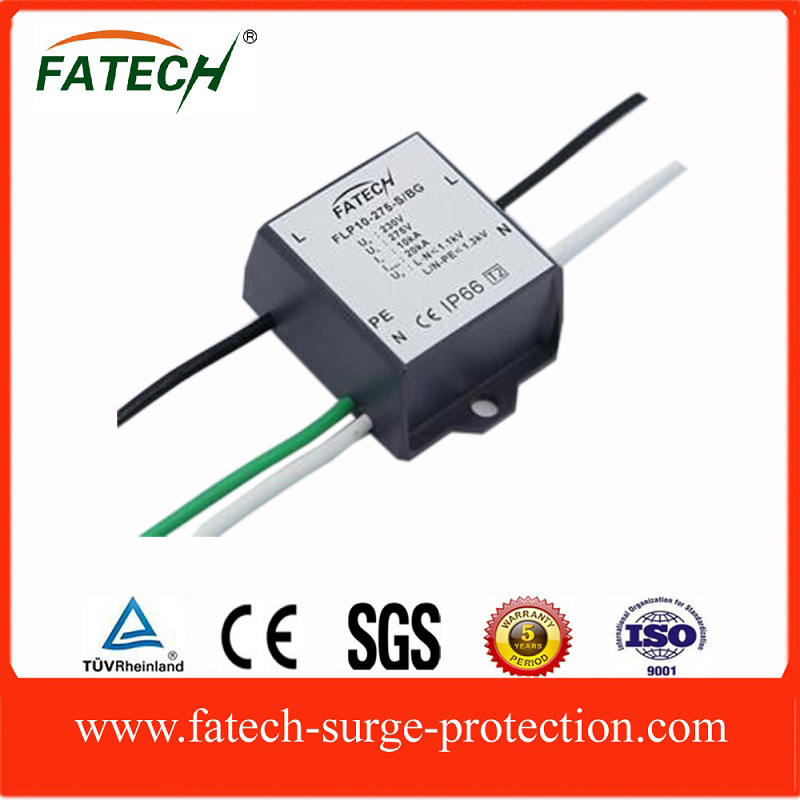

1. Surge protector for LED Street Light Characteristic FLP10-150-S
- New designed LED lighting surge protection module.
- specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting.
- 20kA lightning surge protection.
- Metal oxide varistor (MOV) thermal protection.
- Parallel connected and series connected SPD options.
- Waterproof IP66.
2. APPLICATION of Surge protector FLP10-150-S
LED Street Light
If you are interested in, please feel free contact to me!
Model No.: FLP10-150-S |
|
|
|
Max. continuous AC voltage | Uc | V | 150 |
Rated Voltage | Un | V | 110 |
Nominal Discharge current(8/20μ s) | In | kA | 10 |
Max. discharge current (8/20μ s) | Imax | kA | 20 |
|
Voltage protection level (at In) | Up | kV | <=1.0 |
Response time | tA | ns | 25 |
Recommended back-up fuse |
| A | 63 |
Operation temperature range |
|
| -40 ~ +85degree |
Degree of protection |
|
| IP66 |
Protection mode |
|
| L-N,L-PE,N-PE |
FATECH ELECTRONIC Co., Ltd., is located in Guangdong Provincial New Light Production Base, China, which is a professional manufacturer on R&D and producing on lightning and surge protection devices. Our company gathered all kinds of high-skillled personnels, including authority technical experts and professionals, and excellent technicians with more than 10 years experience.
1. Our main products:
-Surge arresters for protection of photovoltaic system,
-Surge protection devices for protection of power supply systems,
-SPD surge protectors for protection of signal system,
-Lighting rod & lightning counters,
-Test devices.
Wide range of lighting & surge protection products assured you a one stop shopping location for all your need and professional technical support.
2. Our global partners:
We are now exporting more than 100 countries and areas, mainly in Europe, Asia, Latin-America, and Middle East. Our global partner including Ericsson, Sri Lanka Telecom, Telefonica-Movie and so on.
3. Our in-house test lab.:
We established an independent testing laboratory, including reliability testing laboratory, environmental aging testing laboratory, release testing laboratory, which can be performed tests below:
-Impulse current generator (8/20 μ S/160kA and 10/350μ S/25kA)
-Thermal stability tester
-Salt Spray Chamber
-Multi-function Varistor Tester
-On-line Aging Tester
-Dielectric Voltage Withstand Tester
-1.2/50 Voltage Impulse Generator
-Environment Stimulating Tester
-Lightning Surge Counter Tester
We are looking forward to cooperate with more customers worldwide, and warmly welcome your visit and audit our factory.
