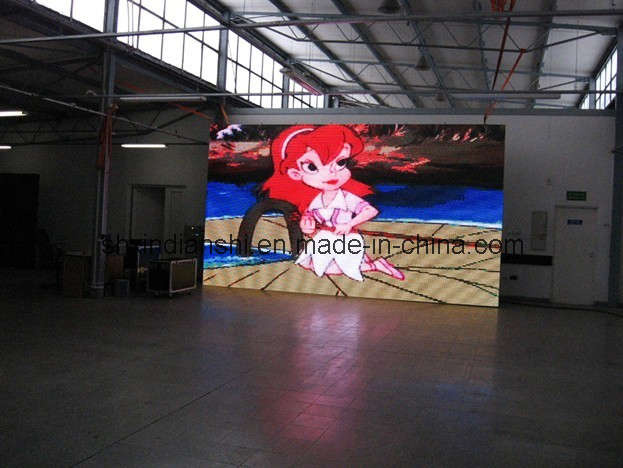

pH12mm 3-in-1 SMD outdoor full-color LED display
Parameter of full color display, LED display, outdoor LED display
Pixel
Physical pixel pitch: 12 mm
Pixel configuration: 1R1PG1PB
Chip
Wave
Brightness
Packing
R
Opto
620-625nm
750mcd
SMD-5050
G
Silan
520+/_1.25nm
1700mcd
SMD-5050
B
Silan
470+/_1.25nm
390mcd
SMD-5050
Module
Module size: 192 x 192 mm
Module resolution: 16 x 16 pixel
Cabinet
Physical resolution: 64 x 64 pixels
Cabinet size: 768 x 768 x 150 mm
Physical density: 4096 pixels/cabinet
Module quantity: 16 PCS
Material: Iron
Weight: 38Kg
Power supply(5V40A)quantity: 2PCS
Average power consumption: 200W
Max power consumption: 350W
Electricity parameter
Brightness: ≥ 5500 nits
Brightness adjusted: 100 grade by software, or by Auto-optic induced
Color processing: 16bit
Display color: 280 trillion
Color temperature(k): 5000 _ 9500 (choice by user)
Physical density: 6944 pixels/m2
Whole display flatness: ≤ 1mm juncture
Best view distance: ≥ 8m
Best view angle: Horizontal ± 80° , Vertical ± 80°
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C
Driving method: Constant driving current Scan: 1/4
Refresh frequency: ≥ 400Hz
Frame rate: ≥ 60Hz
Humidity(RH): ≤ 90~95%
Protection grade: IP65
Power supply: AC 110 / 220V, 50/60Hz
Average power consumption: 350W
Max power consumption: 650W
MTBF: 10, 000 hours
Screen lifetime: 100, 000 hours
Control system
Control system: Linsn
Signal interface: DVI
Communication distance: Internet cable: ≤ 120m Fiber cable: 1000m
Signal transfer mode: Pixels to pixels display synchronized
