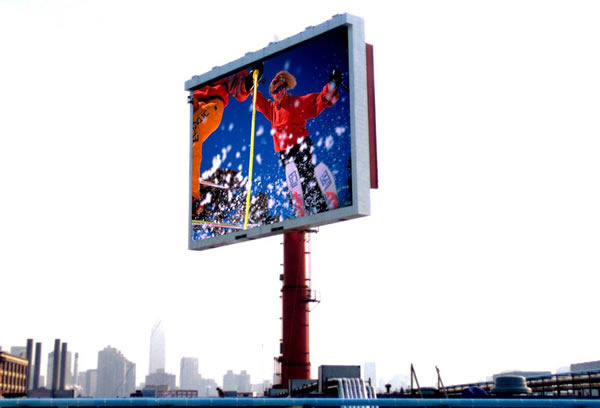

Outdoor LED display, full color LED display, Full color LED display-P20 on a functional
1) broadcast video features:
A. Player camera, clear, flicker-free display of video images into it, and all kinds of programs live;
B. Player recorder, player (VCD, DVD, LD) and other video programming to meet the basic needs of cultural and sports activities;
C. Can play AVI, MOV, MPG, DAT, VOB, and other file formats;
D. Brightness, contrast, saturation, the software can adjust color, adjust the range of 256;
E. Overlapping (VGA + VIDE), video (Video), VGA display mode three;
F. A Video image compression control
G. A display synchronization
H. Using Line-Double features will be staggered screen conversion of non-staggered screen, a mobile compensation;
I. A way to provide audio signal amplifier to use, at least allow the importation of two-way video camera interface;
2) information dissemination functions:
A. Can show all kinds of computer information, graphics, pictures and two, three-dimensional animation, has a rich player, a rolling display of information, notification, slogans, data storage capacity;
B. There are many Chinese fonts and fonts to choose from, can also enter English, French, German, Greek, Russian and Japanese, and so the foreign language;
C. Broadcast system with multimedia software, flexible import and broadcast a variety of information can be broadcast text messaging, players can form roller, roller line, leads to the introduction of models, available on shift, the left, the news broadcast can be recycled. Font, size can be arbitrary choice, you can set up playback speed, and more information can be broadcast at the same time, or with animation, images broadcast at the same time.
D. Possible date, time show or string, expressions display;
E. For national policies, laws, regulations and service commitment to the Declaration;
F. The weather forecast broadcast
G. Other public information dissemination;
|
P20 LED Outdoor Full Color Display |
|
(1) Structure Sketch Map |
|
|
Structure Remark: Each pixel composed by 2R1G1B three LED tubes. |
|
(2) Pixel specifications |
|
No. |
Item |
Parameters |
|
1 |
Pixel size: |
5mm |
|
2 |
Pixel Pitch |
20mm |
|
3 |
Pixel Intensity |
6500cd/M 2 |
|
(3)Tube Core Specifications |
|
No. |
Item |
Wave Length |
Intensity |
Brand/Origin |
|
1 |
Red Core |
620— 625nm |
500mcd |
Brands can be chosen by clients. |
|
2 |
Green Core |
520— 525nm |
1800mcd |
|
3 |
Blue Core |
465— 470nm |
600mcd |
|
(4) Screen body specifications |
|
Display size |
|
|
Module Size |
320mm*160mm |
|
Module Resolution |
16dots*8dots |
|
Cabinet Size |
1280mm*960mm |
|
Display Density |
2500dots/M 2 |
|
Max power/sqm |
(800w/M 2 )(average) |
|
Packing |
Cartons+ Plywood case |
|
Gross weight/case |
60kg |
|
Lead time |
25 days |
|
Drive way |
4 scans CC drive |
|
Visible Distance |
20-200 meters |
|
Gray Scale |
Red 256, green 256, blue 256 |
|
Display Color |
256*256*256 |
|
Frame Rate |
≥ 120frames/second |
|
Scanning rate |
120HZ |
|
Life time |
> 100000 hours |
|
Screen MTBF |
5000 hours |
|
Malfunction Dot Rate |
≤ 0.0003 |
|
Work Voltage |
AC220V± 15% 40 -65HZ |
|
Control distance |
< 100m(without relay)(5 wire) (> 500 with fiber) |
|
Work Temperature |
-20º C-60º C |
