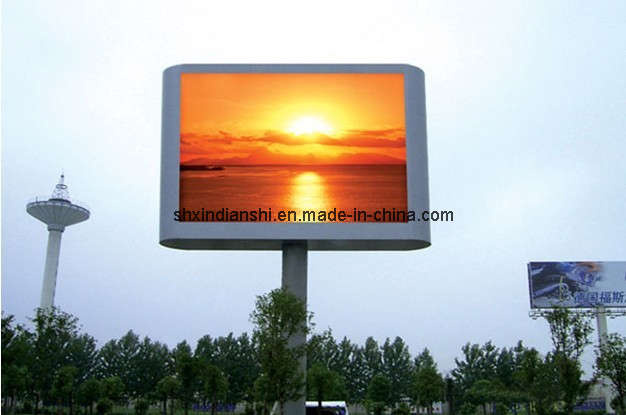

LED display, outdoor display, full color LED display, outdoor LED display, P16 Outdoor Full Color LED Display
Features of outdoor LED display, LED display, full color LED display:
1. The LED display is PC connected and synchronously show all kinds of word, text, graph, picture, flash, existing video, real time video, 2-dimention cartoon, and 3-dimention cartoon supported by your personal computer.
2. Free control system software with on-line update and 12 kind of language including English, French, Spanish, Polish, Italian, Portuguese, Russian and Korean.
3. As high as IP65 of waterproof and dustproof, which is almost highest rating in LED screen industry.
4. Outstanding performance in cabinet thermal dissipation and cabinet rustproof.
5, whole series product include p10 p12 p16 p20 p25 p31.5.
|
(1) Structure Sketch Map |
|
|
Structure Remark: Each pixel composed by 2R1G1B three LED tubes. |
|
(2) Pixel specifications |
|
No. |
Item |
Parameters |
|
1 |
Pixel size: |
5mm |
|
2 |
Pixel Pitch |
16mm |
|
3 |
Pixel Intensity |
7000cd/M 2 |
|
(3)Tube Core Specifications |
|
No. |
Item |
Wave Length |
Intensity |
Brand/Origin |
|
1 |
Red Core |
620— 625nm |
500mcd |
Brands can be chosen by clients. |
|
2 |
Green Core |
520— 525nm |
1800mcd |
|
3 |
Blue Core |
465— 470nm |
600mcd |
|
(4) Screen body specifications |
|
Display size |
|
|
Module Size |
256mm*128mm |
|
Module Resolution |
32dots*16dots |
|
Cabinet Size |
1024mm*768mm |
|
Display Density |
3906dots/M 2 |
|
Max power/sqm |
(1100w/M 2 ) (average) |
|
Packing |
Cartons+ Plywood case |
|
Gross weight/case |
42kg |
|
Lead time |
25 days |
|
Drive way |
4 scans CC drive |
|
Visible Distance |
20-200 meters |
|
Gray Scale |
Red 256, green 256, blue 256 |
|
Display Color |
256*256*256 |
|
Frame Rate |
≥ 120frames/second |
|
Scanning rate |
120HZ |
|
Life time |
> 100000 hours |
|
Screen MTBF |
5000 hours |
|
Malfunction Dot Rate |
≤ 0.0003 |
|
Work Voltage |
AC220V± 15% 40-65HZ |
|
Control distance |
< 100m(without relay)(5 wire)(> 500 with fiber) |
|
Work Temperature |
-20º C-60º C |
