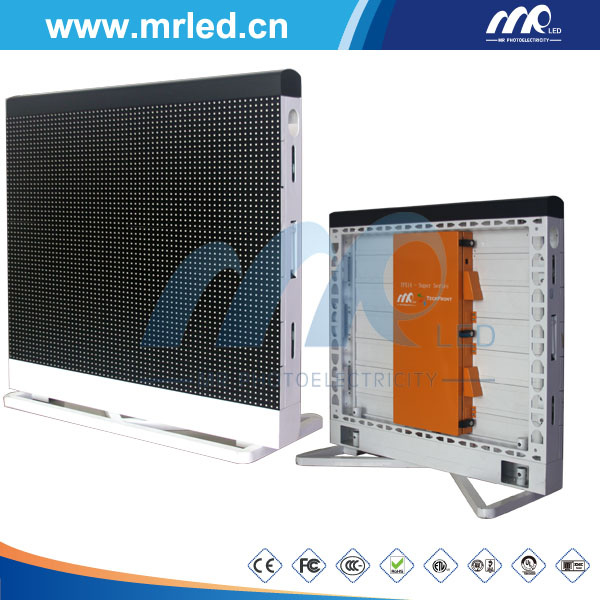

Outdoor LED Display for Sports Advertising
| Price: |
US $ 660-10000/Square Meter |
| Trade Terms: |
FOB,CIP,CPT |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P |
Product Name: 2013 China New Products Sports LED Display(DIP 346)
1). Wide application field:
2). High brightness: 4000~5000CD/m2
Automatic or manual adjustment of the brightness of the display.
3). Top LED chip:
Supplied by Silan of China & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5). Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
6). Price Competitiveness: We supply products with excellent quality and competitive price, which is more attractive in the international LED markets, and OEM order is available.
7). Quality Features: Good abstraction of heat efficiency and stable performance; High resolution of screen image; No mosaic; Freezeproof, waterproof, antistatic and low cost of operation.
8). Service Competitiveness:
1. Guarantee time: Two year quality guarantee, and we will provide some free parts to repair if there is something wrong during the period.
2. Free training: You could send your staff who has some knowledge of electronics to our factory and we will provide free training about how to maintain and repair.
3. Technical support: We could send our engineer to guide the installation for you.
9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
|
Item |
Technical parameters |
|
Pixel Tube |
primary color: Red + green + blue Pixel components: DIP346 1R1G1B |
|
standard cabinet |
Signal transmission direction: horizontal
Pixel pitch: 10 mm
Cabinet size: 960mm x 960mm x150mm
Cabinet Resolution: 96 dot x 96 dot |
|
module |
Module Size: 160(W)x 160(H)
Module resolution: 16 dot x 16 dot |
|
basic parameters of Screen |
Horizontal Pixel pitch: 10mm vertical Pixel pitch: 10mm
Pixel density: 10000 dot /sqm
Static constant current drive: brightness: 4000~5000cd/ m2
Screen perspective: Horizontal≥ 110° ; vertical≥ 60°
Weight: 40kg/ m2
Operating voltage: AC220V± 10% 50HZ Or AC110V± 10% 60HZ
Average power consumption: 450W/m2 |
|
Control system |
System brand: MELL-LINSN-801
Operating system: WINDOWS XP
Control mode: Synchronous/asynchronous (optional)
Data import interface: RJ45, USB2.0 |
|
Main technical parameters |
1) Drive mode: Static constant current drive
2) Refresh Rate: ≥ 480Hz Frame frequency: ≥ 60Hz
3) gray scale: 14bit or 16bit
4) Brightness adjusting: software at level 100 can be adjusted
5) Life expectancy: 100000 hours
6) viewing distance: 12 M~35M
7) IP rate: IP65
8) Working temperature and humidity: -20~+65 celsius/10%~95%2 |
|
management software |
LED management tool |
|
configuration |
Material of cabinet, power supply, lamp and control system are optional according to you demand |
| Prod Model: |
P10mm |
| Markets: |
North America,South America,Africa |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP54 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
ETL |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
