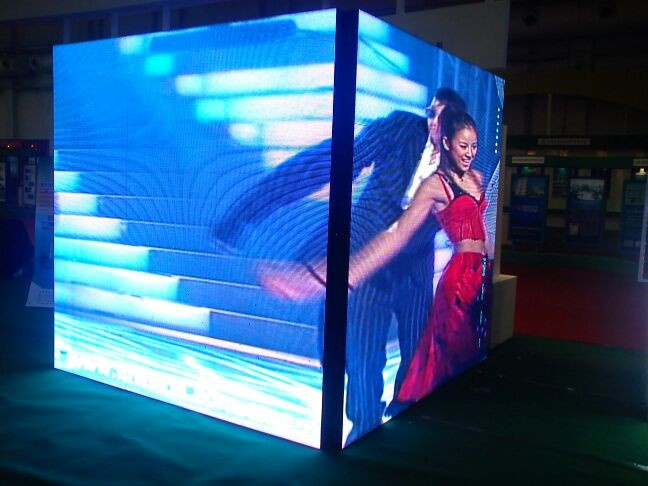

Outdoor Full Color LED Display (P10 advertising LED Display Screen)/LED sign/LED wall
1.Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc.Place, with the special of dampproof, windproof, sunproof, static proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display)
Product Description
P10 Outdoor Waterproof Display LED
1.UL, CE&RoHS certificate
2.Vivid image
3.Big viewing angle
4.Life Span:100, 000hrs
P10 outdoor full-color LED display |
Item |
Details |
Parameters |
Pixel |
Physical |
10mm |
Pixel Configuration |
1R1G1B |
Module |
Module resolution |
16*16 pixels |
Module Size |
160*160mm |
Cabinet |
Physical resolution |
64*64 pixels |
Cabinet Size |
640*640mm |
Physical density |
4096 pixels/cabinet |
Module quantity |
16pcs=4(w)*4(h) |
Material |
steel |
Weight |
28KGS |
Power supply(5V40A) Quantity |
2 pcs |
Average power consumption |
100w |
Max power consumption |
2900w |
Electricity
parameter |
Brightness |
≥8,000 |
Brightness adjusted |
100 grade by software or by Auto-optic induced |
Color processing |
16 bits |
Display color |
281 trillions |
Color temperature(k) |
7,200k |
Physical density |
10000 pixels/ per square meter |
Whole display flatness |
≤ 1.2mm |
Best view distance |
8-60m |
Best viewing angle |
H≥120 degree V≥50 degree |
Storage temperature |
40 degree -60 degree |
Working temperature |
20 degree-60 degree |
Driving Method |
Constant driving current Scan: 1/4 |
Refresh frequency |
up to 3000Hz |
Frame rate |
25-75Hz |
Humidity(RH) |
10%-90% |
Protection grade |
Front IP65, Rear IP54 if not specified |
Working voltage |
DC 5V |
Power supply |
AC 110V ±10% / 220V ±10% |
Average power consumption |
400W |
Max power consumption |
1000W |
MTBF |
10,000 hours |
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
Signal Interface |
DVI |
Communication distance |
CAT5cable:≤100m Fiber Cable:≥500m |
Signal transfer mode |
dot to dot synchronized with computer monitor |
