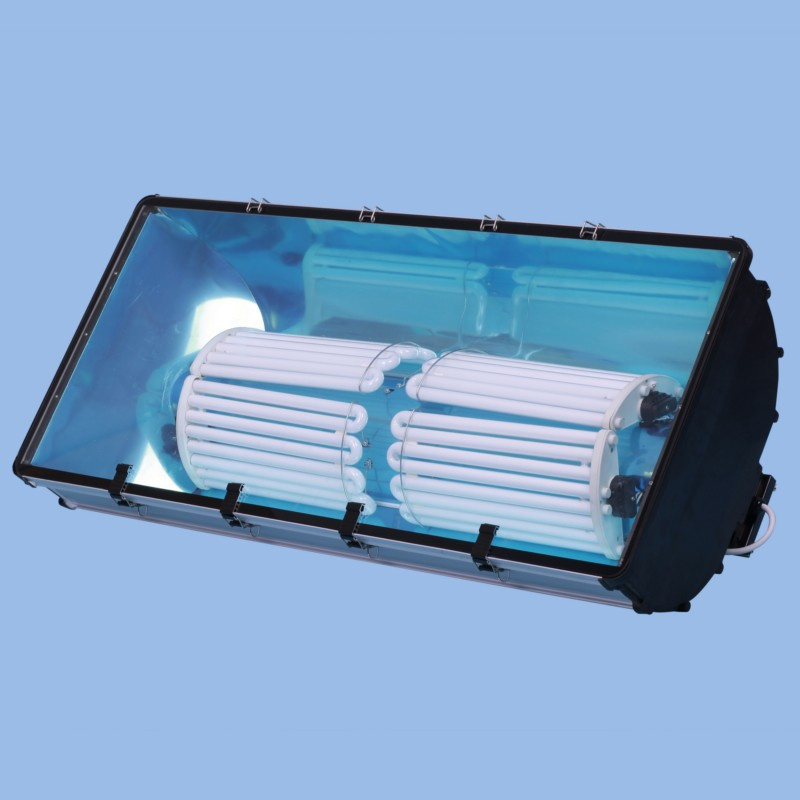

Product Features of Tri-proof Superbright Energy Saving Lamp
1. Pure aluminum alloy housing, preservative treatment;
2. High-purity aluminum mirror reflector, designed via excellent distribution curve;
3. Anti-heat and anti-shock tempered glass;
4. Anti-high temperature silicon sealed, protection class is IP65;
5. 0.99 high power factor; Low harmonics content (totally less than 5%);
6. Use design principle of super-bright energy saving lamp. Illumination value is 3 times higher than that of traditional energy saving lamp.
7. 100% tri-phosphor fluorescent powder, color rendering index is 83; Objects under light are very clear;
Applications:
Suitable for lighting of factory, station, port, warehouse, marketplace, etc.
Product Installation:
Ceiling Installation
Boom Installation
45° Installation
Arbitrary Angle Installation
|
Item No. |
Power (W) |
Current (A) |
Power Factor |
Dimension (mm) |
Equivalent Brightness |
|
Length |
Width |
Height |
Mercury Lamp |
MH Lamp |
Sodium Lamp |
|
SL36-4U. D |
36 |
0.16 |
0.99 |
380 |
258 |
213 |
125 |
70 |
70 |
|
SL70-4U. D |
70 |
0.32 |
0.99 |
450 |
258 |
213 |
250 |
175 |
150 |
|
SL100-4U. D |
100 |
0.45 |
0.99 |
515 |
258 |
213 |
450 |
250 |
250 |
|
SL140-8U. D |
140 |
0.64 |
0.99 |
522 |
408 |
265 |
450 |
250 |
250 |
|
SL200-8U. D |
200 |
0.91 |
0.99 |
577 |
408 |
265 |
1000 |
400 |
400 |
|
SL280-16U. D |
280 |
1.27 |
0.99 |
825 |
408 |
265 |
|
400 |
400 |
|
SL400-16U. D |
400 |
1.82 |
0.99 |
895 |
408 |
265 |
|
1000 |
1000 |
Established in 1999, Chengdu Senlu Electric Co., Ltd. is a leading company specialized in high power energy saving light. Based on the worldwide high requirement in the light source field and excellent innovative ability, we have accomplished some of the top scientific and technological achievements in the world. We originally created the technology of heat emission for high power energy saving lamps by the use of pure aluminum hull, convection technology, heat insulation, etc. We have taken as many as 32 core technology patents, which solved the problems of heat emission in high power energy saving lamps, and have thereby completely revolutionized them.
