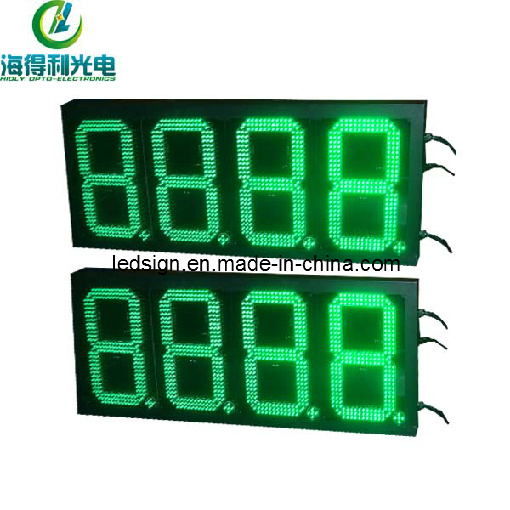

Specifications for LED gasoline display
1. High brightness and quality
2. Enerqy--savor
3. CE or RoHS
4. Wit controller
5. Wide range-8, 12.5, 16, 18, 20inch
One piece 8 inches small panel match with three pieces 12.5 inches
Size: 87.5*34*4.5cm
12.5 inches small panel match with 20 inches
Size: 143.5*57.5*7cm
LED gas price sign is programmed by SCM and control the high-brightness LED to display many different price digits. It is energy saving, environmental protection, easy-operation, catch eyes, it is new-style gas price display.
--------------------------------------------------------------------------------------------------------
Instruction for LED gasoline display
1. Highly brightness LED are arranged to several 8 figure, the digits can be up to 32PCS.
2. Single side, double sides, three sides, four sides.
3. Support remote editing, 20m distance for infrared communication; Support PC program and wireless communication, distance can be 800m.
4. Adjusting the brightness automatically by skylight brightness, the display can adjust 16levels of brightness automatically between evening and daytime
6. Visual distance. 100m
7. Visual angle. 70 degree
8. Brightness. 4000CD/m2
9. Color. Red, green, amber, white or customized color.
10. Digit mesurement. 12.5inch(digit height) 1inch=25.4mm=2.54cm
11. Single dimension. 233mmX325mm
12. Location hole dimension. 218mmX310mm
13. Single 8 figure weight. 400g
14. LED quantity of one 8 figure. 250PCS
15. Display"0, 1, 2, 3, 4, 5, 6, 7, 8, 9, DOT"
16. Working environment temperature. -40 ° C to +80 ° C
17. Humidity. 0% - 95% RH
-----------------------------------------------------------------------------------------------------------------
Technical Info for LED gasoline display
1. Controller power. 1.5watt, one controller can drive 32PCS"8"figure
2. Max power of 12.5inch is 20watt
3. Voltage. AC110 or AC220.
4. One power of 12V30A can connect 14PCS LED signs(360*0.8/20=14)
5. Method of controlling LED brightness. Manual operation(by remote controller)and automatically control(by light sensor to adjust brightness higher during daytime, and lower during evening to save energy. )
6. Component.: Main board(one controller can drive up to 32PCS of"8"figure maximum. ), power supply, remote controller, infrared receiver port, light sensor.
7. We can customize your products according to your detailed requirements, like voltage, power, installation size, display colors etc.
Many thanks for your time to check our LED gasoline display. Please feel free to contact us.
Size
| 8inch | 12inch | 12.5inch | 16inch | 18inch | 20inch |
Quantity of LEDs
| 108pcs | 250pcs | 250pcs | 273pcs | 635pcs | 669pcs |
Front Height
| 195mm | 300mm | 310mm | 400mm | 462mm | 500mm |
| PCB Size | 143mm*327mm | 225mm*317mm | 232mm*327mm |
300mmx422mm
| 353mmx498mm | 390mmx558mm |
Color
| red / yellow / green / blue /amber / white |
Cabinet Size
(8889/10 or 888.8with waterproof iron cabinet) | 27*64.3*4cm | 40*100*4cm | 40*100*4cm | 49*126*4cm | 56*147.3*6cm | 62*164.5*6cm |
Control box size:
| 300*300*80mm |
Control System
| RF controller. RF remote, Meanwell Power supply and Fan,7 grade automatic adjustment brightness |
Control Distance
| 30m --100m |
Package
| Plywood with EPE, Netural package. |
