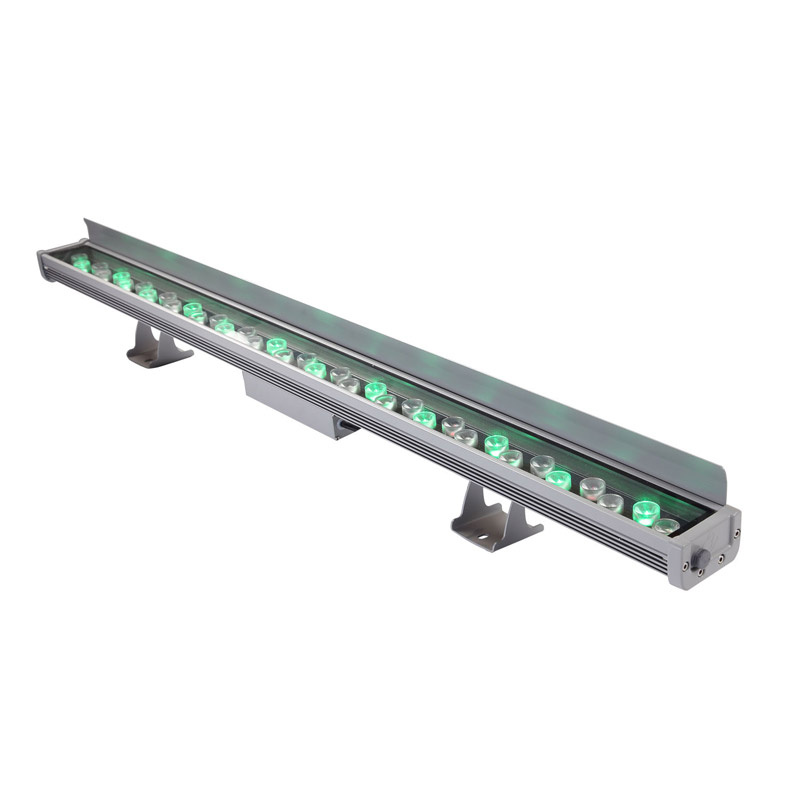

Outdoor IP65 36*1W RGB 1m LED Wall Washer

Outdoor IP65 36W RGB 1m LED Wall Washer

New design and new Features:
1.Respirator :could let the water and fog out of the body,  much better waterproof.
2.Crescent-shaped bracket :can be mounted at 90degree.
3.External LED driver (in the bottom of the body) ,much better heatsink and Easier repair.
4.Shading plate for selection.
5.Transparent or Silk Screen Tempered glass for selection.
Designing by our engineers , We are the sole owner. So we could control good quality in every step.
6.AC220V, Internal control,without Controller/ DC24V External control,with DMX controller



Applications:
1) Lighting for lawn, tunnel, parking lot, gas station
2) Lighting for virescence site, advertising board, outside wall, monomer architecture
3) Lighting for the special equipment of hospital, civilization
4) Ambience lighting for bar, hotel, dance hall
5) Lighting for billboard, building, outside wall, factroy.
6) Lighting for streets, stadiums, bridges, outside Buildings, car Parks, billboards
7) Lighting for marketplace, library, museum, supermarket, storage rooms, corridor
8) Lighting for landscaping building, wall washing for bars, clubs, stages, plazas

Remarks:
1)LED Wall Washer should be used in accordance with the environment requirement
2)DMX512 control system:
A: Set one as a host, the others set as address mode when many sets wall washer working together.
B: Set all the lights to the address mode(001-512), instead of the master internal control mode when the multiple connectors receive the command of DMX signal.
C: Setting the same address code, the lighting change with the same effect;
D: To ensure the transmission of the DMX signal is reliable, when lighting connecting beyond 100M, should increase amplifier to enlarge the DMX signal.
E: The input and output port should meet the requirements, otherwise it will damage lighting.

Competitive Advantages
· Experienced technical staff
· Advanced equipment
· High quality
· Experienced R&D department
· OEM accepted
· Strong production capability
· Large scale production lines
· Clients' special requirement accepted
· Unique design
· Good reputation


Harmony's main products:
Led flood light, led street light, led light bar, LED Wall washer; LED module light.

Our service:
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into production.
4. Protection of your sales area, ideas of design and all your private information.
5. Best quality and competitive price

Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product



Delivery:
3-9workdays for 1000-3000PCS after deposit, 1-3days for sample

Item NO.	RH-W48
Power	24*2W
Size	L1000*W70*H90MM
LED chip	Cree,Bridgelux,Edison,Epistar
Material	Aluminum    alloy
Light efficiency	90-120LM/W
Protection level	IP65
Power Factor	0.95
CCT	w/ww:2700-7500K,R:620-625k,G:520-525K,B:460-465K
Lamp cover	Silver,black,
Light color	RGB,W/WW/R/G/B is available
Voltage	AC85V~265V,DC24 is available
Beam angle	30°/45°/60°
Life span	50,000hrs
Warranty time	2-3years
Certificate	CE&ROHS
