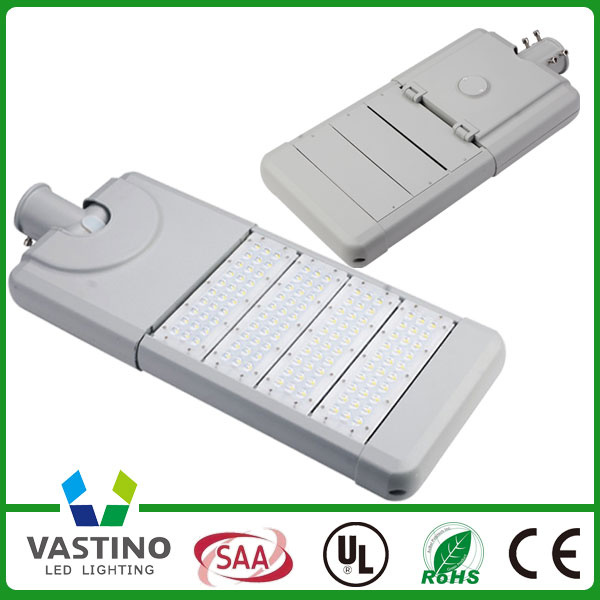

Outdoor IP65 100-180W LED Street Light
Basic Data:
1.Product Name:
2. Item no:YSST-003
3. Main materail: Aluminium+PC
4. Certificatie:CE ROHS
LED:
1.LED Brand:Epistar/Cree/Base on requirement
2.LED type:high power
3.LED Working Volatge:AC100-240V
Electrical Data:
1.Rated Frequency:50/60Hz
2.Nominal Wattage:120W
3.Lamp Efficency:≥89%
4.Power factor: ≥ 0.95
Techiniacal Data:
1.Color termperature:WW/NW/PW
2. IP Grade:IP65
3.Beam Angle: 90*135°
4.Color Rendering Index: ≥ 65
Optical Parameter
Model No. | YSST-003 |
Led Source | 30Pcs High power/Module(Bridgelux) |
Power | 100/120/150/180W |
Lumens | 12000lm±10%/120W 14800lm±10%/150W |
Input Voltage | AC100-240V |
Color Temp. | WW 2800-3000K NW 4000-4500K PW 6000-6500K |
Beam Angle | 90*135° |
Mechanical Parameter
CRI | Ra≥65 |
Power Factor | >0.95 |
Material | Aluminum+PC |
Color of Shell | Grey |
IP Grade | IP65 |
Lamp Efficiency | ≥89% |
Adaptable Environment | -20°C to +55°C |
Lamp Working Temp. | ≤65°C |
Packing Info.
Lamp Size | L615*W315*H90mm/3 Module L700*W315*H90mm/4 Module |
Installation Dimension | D65mm |
Net Weight | 9.56Kg/3 Module 10.5Kg/4 Module |
Carton/PCS | 1PCS |
Carton Size | W330*L720*H130mm/3 Module W330*L800*H130mm/4 Module |
Carton Weight | 11Kg/3 Module 12Kg/4 Module |
Application:
1.Highway,bridge,park
2. outdoor street
3. Hig lumens Excellent energy saving
