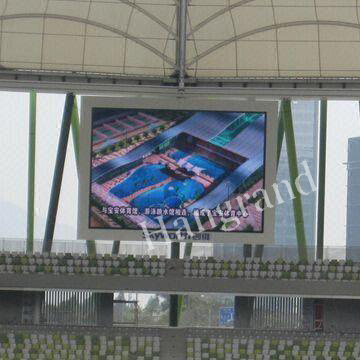

Sports LED Display
Product Features
1. Esay to install and safe with unique hanging architecture in design
2. Super slim aluminum cabinet, 65mm in thickness, 25kg/sqm in weight
3. Professional audio&video processing system can support diversified input and live broadcasting
4. Supply professional audio&video processing system. Support diversified input signal and live broadcast
5. Super wide viewing angle for maximum visual experience(Max 145° )
|
|
ITEMS |
P16 |
|
Module |
Pixel Pitch |
16mm |
|
Pixel Density |
3906dots/m 2 |
|
Led Lamp Type |
DIP |
|
Led Configuration |
2R1G1B |
|
Module Size |
256× 128mm |
|
Module Resolution |
16× 8 |
|
Scan Mode |
Static |
|
Drive Mode |
Constant Current |
|
Cabinet |
Cabinet Size |
1024× 768mm |
|
Cabinet Resolution |
64× 48 |
|
Module Quantity |
24 |
|
Cabinet Weight |
55kg/m 2 |
|
Display |
Brightness |
≥ 7500cd/m 2 |
|
Contrast Ratio |
≥ 4096: 1 |
|
Viewing Angles(H/V) |
120° /60° |
|
Min. Viewing Distance |
16m |
|
Gray Scale |
≥ 12bits/4096level |
|
Colors |
68.7billion |
|
Power Supply |
Average Power Consumption |
266w/m 2 |
|
Working Voltage |
AC 90 to 260V, 50 to 60Hz |
|
Control System |
Frame Changing Rate |
60 to 85Hz |
|
Refresh Rate |
600 to 4000Hz |
|
Brightness Adjustment |
0 to 100% |
|
Ganma Correction |
(-0.5 to 5.0) |
|
Color Temperature |
3000 to 9300K |
|
Brightness Correction |
By Pixel, Module, Cabinet Correction |
|
Data input Source |
AV, S-Videom, VGI, DVI, HDMI, SDI, DP |
|
Control Method |
Synchronization with computer |
|
Data Transmission Distance |
100m by UTP CAT5; 500m by Multi Optic Fiber; 10km by Single Optic Fiber |
|
Operation Environment |
Windows(2000, XP, Vista, 7) |
|
Reliabilty |
Storage Temperature |
(-40 to 85)centi degree |
|
Working Temperature |
(-20 to 50)centi degree |
|
Working Humility |
10% to 90% |
|
MTBF |
5000Hrs |
|
IP Rating |
IP65/IP43(Front& Rear) |
|
Blind Spot Rate |
≤ 0.01% |
|
Lifespan |
100, 000Hrs |
Shenzhen Hangrand Technology Co., Ltd. is a Hi-Tech enterprise specializing in LED displays, LED & LED lighting products and LED decoration products. We are mainly engaged in the production of outdoor&indoor LED displays, LED bulbs, LED spotlights, ceiling lamps, LED tubes etc.
Our products have gained national patent (Patent NO: 0226570.8). We also have passed CCC, CE, RoHS, FCC and UL Certifications. Our products have been sold to Europe, American, Middle East, Africa and Australia.
Our company is located in the Hengguan Industrial Park in Pinghu, Shenzhen. Our factory covers more than 10000sqm and has 600 employees including 50 senior technicians. Our highly skilled staff members and excellent management persons have implemented a strict quality supervision and inspection system, which ensures that our products can achieve international standards. Our R&D Dept. Has strong capability of developing new items in accordance with customers' requirements. OEM and ODM orders are welcome. We strongly believe in the tenet of "innovation forever, which can lead to a bright future".
We are looking forward to building up good business relationships with all customers based on mutual benefits. You are welcome to visit us and contact us for more details.
