No. Type Tri-Color
1 Pixel Configuration 2R+1G+1B
2 Cabinet Resolution 48pixels(H)× 64pixels(W)
3 Cabinet Dimension 768mm(H)× 1024mm(W)× 160mm(L)
4 Power Consumption(average) 800W/ m2
5 Power Consumption(max) 1200 w/ m2
6 Cabinet Weight 48 kg
7 Density 3906pixels/m2
8 Brightness >6000 nits
9 Color 68 billion
10 Brightness Control Hand/auto regulation
11 Viewing Distance 10-100m
12 Gray Scale Rectification r rectification
13 Picture Regulation Contrast/Chroma regulation/Module brightness regulation
14 Drive Mode Quiescent state, constant current drive
15 Refresh Rate 720 Hz
16 Control Mode Virtual Display; Synchronization control
17 Video Interface S-Video, RGB, VGA, DVI etc.
18 Display Mode 1024× 768
19 Life Time(50% brightness) 50, 000 hours
20 Mean Time To Failure >10, 000 hours
21 Blind LED None
22 Temperature -40 degree~+85 degree
23 Relative Humidity 10%-95%RH
24 Display Flatness The display: ± 1mm Gap between modules: 1mm
25 Display Information Text, Video and Picture etc.
26 Voltage 220V± 10%\380V± 10%
27 Communication Distance <20km
|
|

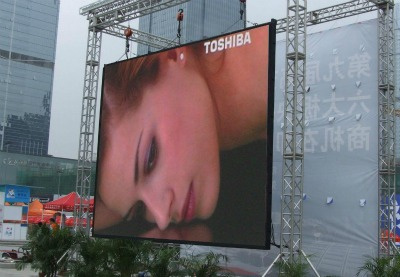

P16 Outdoor Full Color LED Display Parameter
|
No. |
Type |
Full Color |
|
1 |
Pixel Configuration |
2R+1G+1B |
|
2 |
Module Resolution |
16pixels(H)×16pixels(W) |
|
3 |
Module Dimension |
256 mm(H)×256mm(W)×160mm(L) |
|
4 |
Power Consumption(average) |
400w/ m2 |
|
5 |
Power Consumption(max) |
800 w/ m2 |
|
6 |
Density |
3906pixels/m2 |
|
7 |
Brightness |
>7000 nits |
|
8 |
Color |
16.7 M |
|
9 |
Brightness Control |
Manual/Auto |
|
10 |
Gray Scale Rectification |
rrectification |
|
11 |
Picture Regulation |
Contrast/Chroma regulation/Module brightness regulation |
|
12 |
Drive Mode |
Static |
|
13 |
Refresh Rate |
1080HZ |
|
14 |
Control Mode |
Synchronization control |
|
15 |
Video Interface |
S-Video, VGA, DVI etc. |
|
16 |
Life Time |
100,000 hours |
|
17 |
Mean Time To Failure |
>10,000 hours |
|
18 |
Blind LED |
None |
|
19 |
Temperature |
-35°C~+55°C |
|
20 |
Relative Humidity |
10%-95%RH |
|
21 |
Display Flatness |
The display:±1mmGap between modules:1mm |
|
22 |
Display Information |
Video, Animation, Picture, Text etc. |
|
23 |
Voltage |
220V±10%,380V±10% |
|
24 |
Communication Distance |
<20km |
|
|
|
P16 Outdoor Full Color LED Display Parameter
|
No. |
Type |
Full Color |
|
1 |
Pixel Configuration |
2R+1G+1B |
|
2 |
Module Resolution |
16pixels(H)×16pixels(W) |
|
3 |
Module Dimension |
256 mm(H)×256mm(W)×160mm(L) |
|
4 |
Power Consumption(average) |
400w/ m2 |
|
5 |
Power Consumption(max) |
800 w/ m2 |
|
6 |
Density |
3906pixels/m2 |
|
7 |
Brightness |
>7000 nits |
|
8 |
Color |
16.7 M |
|
9 |
Brightness Control |
Manual/Auto |
|
10 |
Gray Scale Rectification |
rrectification |
|
11 |
Picture Regulation |
Contrast/Chroma regulation/Module brightness regulation |
|
12 |
Drive Mode |
Static |
|
13 |
Refresh Rate |
1080HZ |
|
14 |
Control Mode |
Synchronization control |
|
15 |
Video Interface |
S-Video, VGA, DVI etc. |
|
16 |
Life Time |
100,000 hours |
|
17 |
Mean Time To Failure |
>10,000 hours |
|
18 |
Blind LED |
None |
|
19 |
Temperature |
-35°C~+55°C |
|
20 |
Relative Humidity |
10%-95%RH |
|
21 |
Display Flatness |
The display:±1mmGap between modules:1mm |
|
22 |
Display Information |
Video, Animation, Picture, Text etc. |
|
23 |
Voltage |
220V±10%,380V±10% |
|
24 |
Communication Distance |
<20km |
|
SunYEX is a high-tech enterprise specializing in professional R & D, production and selling of LED screens. Our main products include LED display, and other LED lighting fixture. During SunYEX's these years' high speed developing, SunYEX has been working on building a friendly and win-win relationship with partners. We have a wide range of international strategic partners, sharing the benefits brought by international cooperation and division of labor. The international strategy enhances our technology and management level, promotes international quality standard certification and improves its competitiveness in the industry. Additionally, our international strategic alliance speeds up our process of establishing global service system and sales network and our international market further supports our expansion of domestic system and the strategic framework of the whole market. Nowadays, SunYEX brand is more and more recognized and praised by the industry and a wide range of users, which is derived from our efficient work, quality awareness, service awareness and customer awareness formed over years.
With our company's technology level, we have established strong and steady partnership with the world's toppest organisations such as PHILIPS, Toshiba and Siemens in developing product and operating control systems which we are proud of our quality.
SunYEX owns the most advanced LED assembly machinery and a Category 100, 000 dust-free workshop and powerful anti-static system, managed by a highly professional team which is well-known in the LED display industry, adding R&D administration, manufacture and extensive testing area, we believe we are now in a position to offer the world the best reliable product and COMPETITIVE COST for customers in the worldwide markets.
Our main products of SunYEX includes: LED Full Color Display, LED Single/Bi-Color Display, LED Traffic Light, LED Pharmacy Cross Display, LED Digital Tube, LED Solar Light, LED linear strips, LED modules, LED wall washers, LED fluorescent light, LED lighting fixtures, LED neon flex, LED components, LED accessories and so on, all of which are widely used in urban lighting decoration, advertising light boxes backlight, indoor home decoration, stage lighting, project, lights and cars, etc.
SunYEX has a well-trained team including full experienced technicians and salesman; "product quality and customer satisfaction" is our main aim. More and more people continue choosing SunYEX for our excellent quality and unique well service, currently, 95% of our products have been sold in Europe and many other foreign markets.
Our target: To become a worldwide leading LED products provider within 5 years!
