HTS Outdoor Full Color LED Display--Especially for Fixed Installation
Pixel Pitch in 20mm, aluminum cabinet or Iron Cabinet
P20
For outdoor fixed installation
Normal cabinet in market for years can be reliable
Features:
1, Normal cabinet, can be fast installed.
2, Waterproof testing for each cabinet before the delivery.
3, Locating beam and connection plate make the screen fast to be installed.

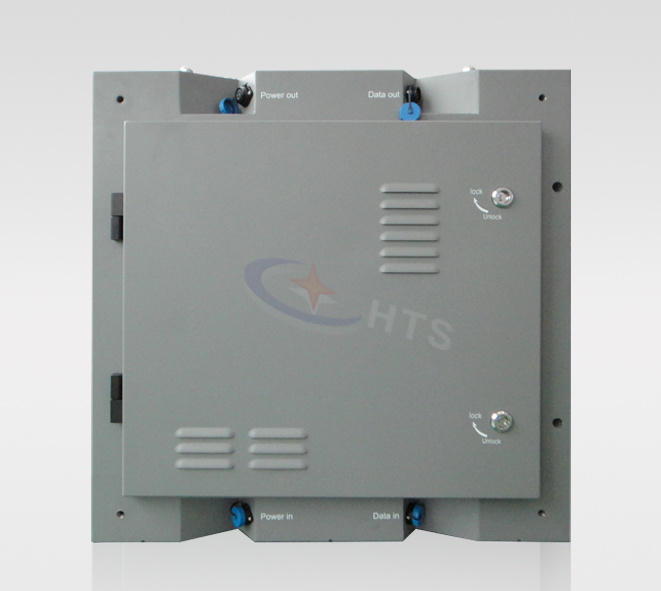

4, Independent back cover and lock, not only moisture-proof and dustproof, but easy to debugging and repair.
5, Brightness is more than 6500NIT, suitable for outdoor environment.
6, With good quality which shows clear videos and pictures even thought on sunny days. Can be used for outdoor advertising, stadium, and all kinds of square.
Model |
P20 |
Pixel pitch |
20mm |
Pixel configuration |
1R1G1B |
LEDtype |
DIP346 |
Module size |
320x160mm |
Module resolution |
16x8 |
Cabinet resolution |
32x32 |
Cabinet size |
640x640mm |
Density |
2500dots per square meter |
Brightness |
6500 NIT |
Scan method |
Static scan |
Best view distance |
≥20m |
Max. power consumption |
1000W/panel |
Ave. power consumption |
500W/panel |
Cabinet Weight |
≤43Kg |
Grey scale |
8192 step |
Color |
6.87trillion |
Refresh rate |
≥480Hz |
Best view |
Horizontal: 120°,Elevation: 30°- 45°, Depression: 10°- 20° |
Brightness adjustable |
256level manual/auto/programmable |
Frame frequency |
≥60Hz |
Out of control pixel rate |
<1/10000 |
MTBF |
>5000 hours |
Lifespan |
50000 hours |
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
Working voltage |
AC 110/220v 50-60Hz |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
Operation temperature |
-20 to +40 |
Working humidity |
10% to 80% |
Protection level |
IP65 |
