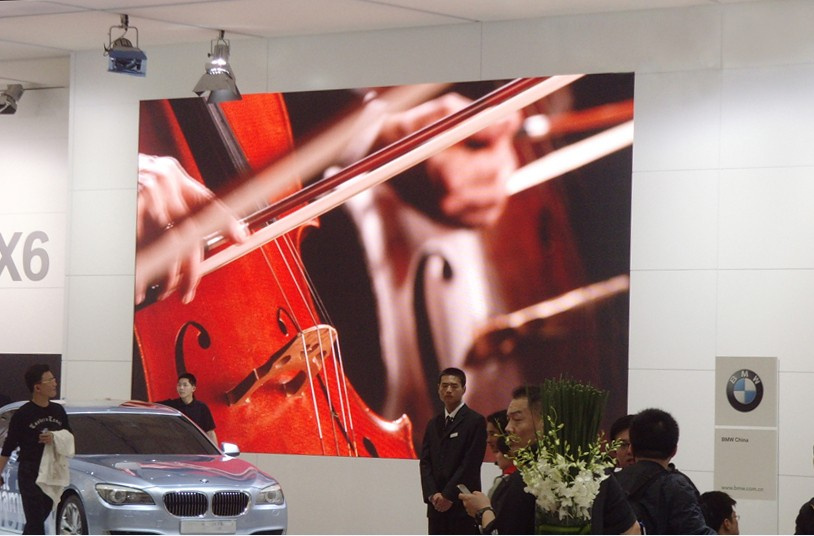

HTS outdoor full color led display cabinet—It is designed fixed installation led display for customers.
Alternative to 10mm aluminum and Iron cabient.
P10
It can be widely used in a variety of outdoor
As a high maturity conventional products on the market, excellent properties for our products.
Features:
1, Reasonable structure design, can be completes fast fixed installation.
2, After waterproof test all the cabinets can ensure waterproof properties.
3, The cabinet upper and lower with positioning holes and positioning column.
4, Independent rear cover and lock design, both moisture-proof, dustproof, and can facilitate fast debugging and maintenance cabinet.,
5, The led display is designed with high-quality lamps, even if under the intense sunlight, still be able to show a clear image and picture, were the outdoor advertising, the outdoor stadium, a large Plaza ideal choice.
|
Model |
P10 |
|
Pixel pitch |
10mm |
|
Pixel configuration |
1R1G1B |
|
LEDtype |
DIP346 |
|
Module size |
160x160mm |
|
Module resolution |
16x16 |
|
Cabinet resolution |
64x64 |
|
Cabinet size |
640x640mm |
|
Density |
10000dots per square meter |
|
Brightness |
6500 NIT |
|
Scan method |
1/4 |
|
Best view distance |
≥10m |
|
Max. power consumption |
850W/panel |
|
Ave. power consumption |
420W/panel |
|
Cabinet Weight |
≤24Kg |
|
Grey scale |
8192 step |
|
Color |
6.87billion |
|
Refresh rate |
≥960Hz |
|
Best view |
Vertical 50°Horizontal 120° |
|
Brightness adjustment |
256 level |
|
Frame frequency |
≥60Hz |
|
Out of control pixel rate |
<1/10000 |
|
MTBF |
>5000 hours |
|
Lifespan |
50000 hours |
|
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
Working voltage |
AC 110/220v 50-60Hz |
|
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
Operation temperature |
-20 to +40 |
|
Working humidity |
10% to 80% |
|
Protection level |
IP65 |
Shenzhen HTS Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.
HTS is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
