Features:
1. Angle adjustable: Left and right cabinets are used the connection structure that can be adjusted its angle, Which can make up the internal and external curved screen in different radian. The minimum angle for external curved installation is 18degree and its maximum angle for internal curved installation is 18 degree.
2. Super slim and light: Its thickness is 70mm and its weight is 12.5kg/pc
3. Fast installation: Three steps such as push, revolve and tighten only take 10 seconds.
4. Standard cabinet: Special-designed brushed aluminum cabinet can efficiently reduce its weight and cabinet size is 500mm x 1000mm.
5. Seamless cabinet connection: The whole screen of surface flatness error<0.2mm
6. Easy heat dissipation: Optional bar screen design and combined with high-quality aluminum material and increase the cooling area.
7. Outdoor waterproof: Waterproof level of IP65 and work in all day.
8. Neutrik flight plug: Make sure screen connection to be faster and product working is more stable.
9. Support for hanging and stacking from the ground.
P8.33 color curtain installation instruction angle-adjustable: hoisting
Installation:

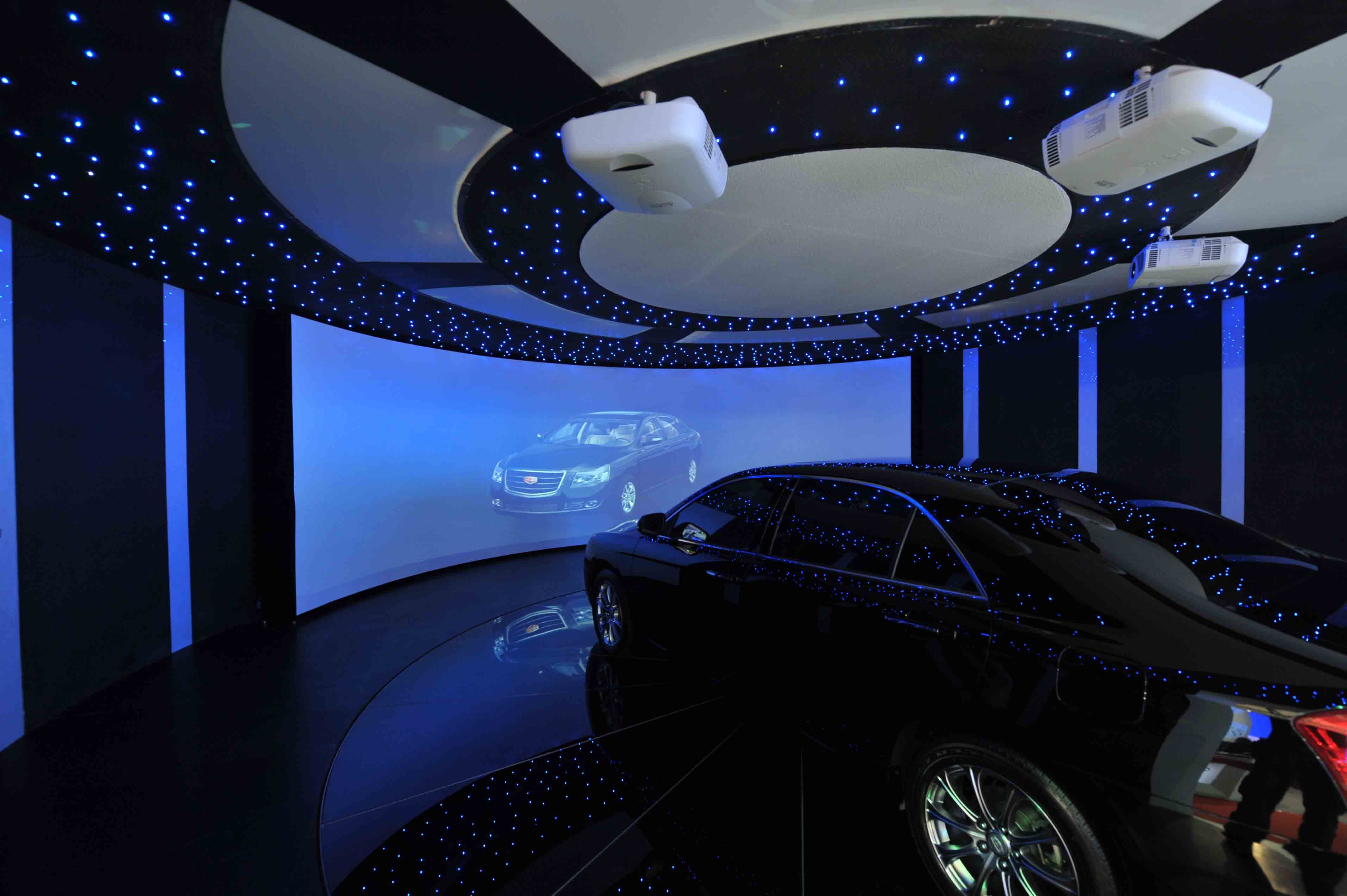

Applications
| Model | P8.33 |
| Pixel pitch | 8.33mm |
| Pixel configuration | 1R1G1B |
| LED type | SMD3535 |
| Module size | 500x100mm |
| Module resolution | 60x12 |
| Cabinet resolution | 60x120 |
| Cabinet size | 500x1000x70mm |
| Density | 14400dots/m2 |
| Brightness | ≥3500 NIT |
| Scan method | 1/6 |
| Best view distance | ≥8m |
| Max. power consumption | 400W/panel |
| Ave. power consumption | 200W/panel |
| Cabinet Weight | 12.5Kg |
| Grey scale | 16 bit\65536 step |
| Color | 281 billion |
| Refresh rate | ≥2000Hz |
| Best view | Vertical: 120°, Horizontal: 120° |
| Color temp | 7500K |
| Frame frequency | ≥60Hz |
| Out of control pixel rate | <1/10000 |
| MTBF | >5000 hours |
| Lifespan | 50000 hours |
| Signal input source | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
| Working voltage | AC 110/220v 50-60Hz |
| Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Single-mode optical fiber: 20km |
| Operation temperature | -20 to +40 |
| Working humidity | 10% to 80% |
| Protection level | IP65 front, IP54 rear |
Shenzhen HTS Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.
HTS is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
