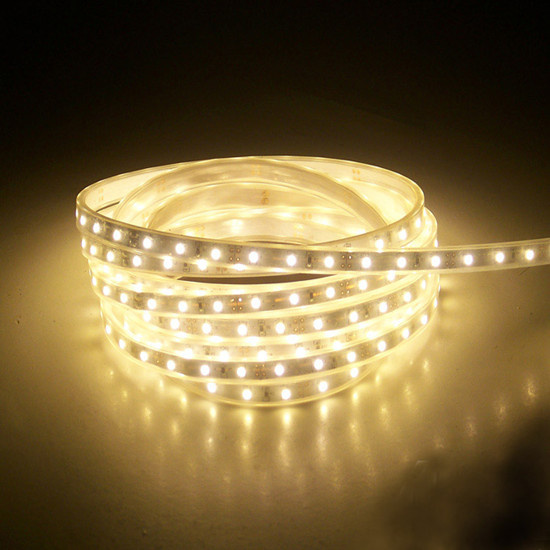

Outdoor Christmas Light SMD5050 LED Strip
Product Description:
Item type | BY-HV5050WW60-220V |
| LED light source | 5050 SMD |
| Input voltage | AC69~260 |
| Power | 14.4W/M |
| Size | 12.5*7.5mm |
| Working temperature | -30~60° |
| Warranty | 3 Years |
| Lifespan | 50,000Hours |
| IP Grade | IP65 |
| Certificates | CE/RoHS |
| Color Temperature | Warm white/Cool white/Day white |
| Luminous Efficiency(lm/w) | 100 |
| Brand | BAYOND |
Main Features
1. Streamy single color 5050 led strip light is a upgrade of traditional monochrome light strip to overcome the effects of a single color LED strip shortcomings; Controller can be realized with the forward, reverse, water flow change modes.
2. Controller can be used alone, but also many on-line use of large-scaleusage requirements.
3. Available Red/Green/Blue/Yellow/Pure White/Warm White.
4.60 PCS /meter roll, 300 PCS/REEL(5meter roll)
6. This 5050 led strip can be cut by 3 LED and connect again by our accessories.
7. Input Voltage DC12V or DC24V;
Installation Diagram:
1. Install: Take out the package, make sure it comes with necessary accessories, which should include: Fixing clips, middle plugs, end caps, head wires. Fix the strips with clips onto where you need, put the wire into sockets to light the strips.
2. Cut: Please cut the strips only along the cutting mark on the PCB, don't cut at random. Block up the end with end caps, seal with enough glue to make sure it is still waterproof.
3. Connect:Plug the head wire into a strip to conduct the electricity, or plug a middle plug into the ends of two separate strips to connect them into a long strip, after well connected, seal all the plugs with enough glue.
Applications:
1. Window displays
2. Building outlines
3. Stairway lighting
4. Indirect cove lighting
5. Pathway safety lighting
6. Restaurants and bars
7. Signs and graphics
Advantage:
1. Easy installation and save cost on power supply
2. Transparent PVC house, high transmittance, bent resistance
3. Flattening appearance, small volume
4. Pretty appearance as quality
5. 70%-80% energy-saving
6. Fashion design and different types
7. No risk of mercury emission, environmental protection
Packing:
1. For wholesale:
5m or 10m Strip light enwind plastic roll, then put into carton with the accessories
2. For retailer:
5m, 10m on roll with controllers and cable/plugs
Buyers pay the fee for special package (color boxes, spools)
FAQ:
Q: How to get a sample?
A: For old customers, we can provide sample free and customer only need pay express freight. For new customers, we will charge 50% higher then the unit price as sample fee and customers need to pay express freight also.
Q: How to pay express charges if order samples?
A: For those customer, who has DHL, FEDEX, TNT, UPS account, can give us your account and we will sendthe samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples by prepaid.
Q: How to pay sample charges?
A: You can pay to our company account. When we received the sample fee, we will arrange to make the samples for you. The prepare time for sample will be 2-7days .
Q: What is your terms of payment?
A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% of total amount as downpayment and the balance paid before delivery.
