Outdoor Advertising Full Color P16 Ventilation LED Display
Ventilated, no light penetration, air-conditioner exonerated.
1. Ventilating
Air can transmit the display body directly, ventilation rate 50%
2. No light penetration
Penetrating design without light penetration, no harm to contrast ration, full conservated the display effect
3. Low windage resistance
Lower requirement of Steel structure, 35% structure cost saved
4. Air-conditioner exonerated
Ventilating leads to high heat radiating, no need fan or air-conditioner
5. Energy-saving and environmental protection
Low power consumption, 50% energy-saving
6. High applicability
IP65, fully sealing design, rain proof, dust proof, adapted to all weather surroundings.
1.Products Feature:
1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from
TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image
can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement
of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect.
P10 Outdoor Full Color Led Signs Commercial Module Parameter
Item | Specification Parameter |
Pixel Pitch,Resolution rate,size | 10mm,32*32 Dots,320*320*30mm |
Pixel color, Pixel LED | 1R1G1B, DIP346 |
Working voltage,Module Power | DC4.2V,50W |
Driving way | 1/4 |
P10 Outdoor Full Color Led Signs Commercial Cabinet Parameter
Item | Specification Parameter |
Material,Cabinet Weight(kg/Cabinet) | Iron ,50kg/Cabinet |
Resolution rate,size,Module quantity | 96*96Dots,960*960*150mm,3*3 |
Density | 10000 |
White balance ,Color temperature | 7500CD,6500K-8000K |
view angel,Non-Flatness,Module interval | H:110°;V:55°,<0.5mm,<0.5mm |
Maximal power,Average power | 580W,195W |
Working temperature,Protection grade | -20ºC - +50ºC,Front/Back:IP65/IP54 |
Frame frequency,Refresh frequency,Gray grade | 60Hz,960Hz,14bit |

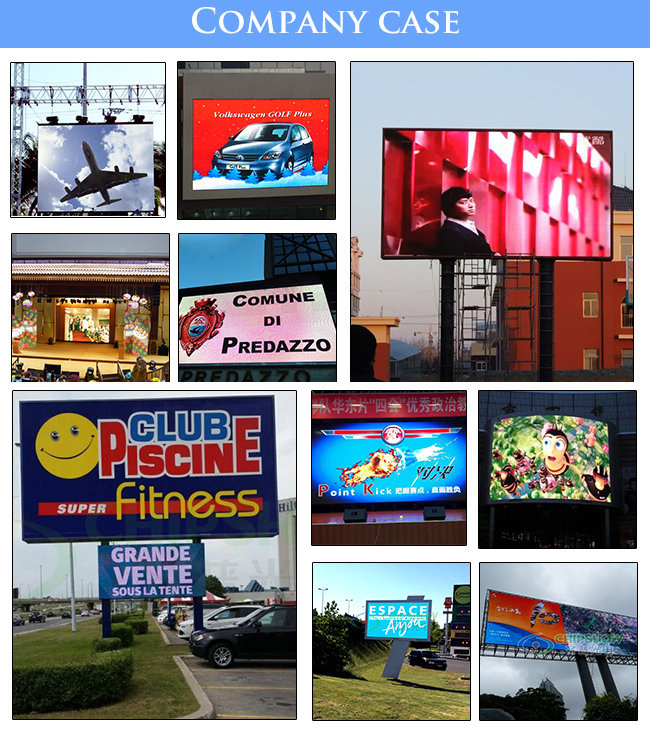

P10 Outdoor Full Color Led Signs Commercial Application places
Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.
Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.
We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...
Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.
Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, such as Coca cola, Guinness, Budweiser, Pepsi, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !
Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
