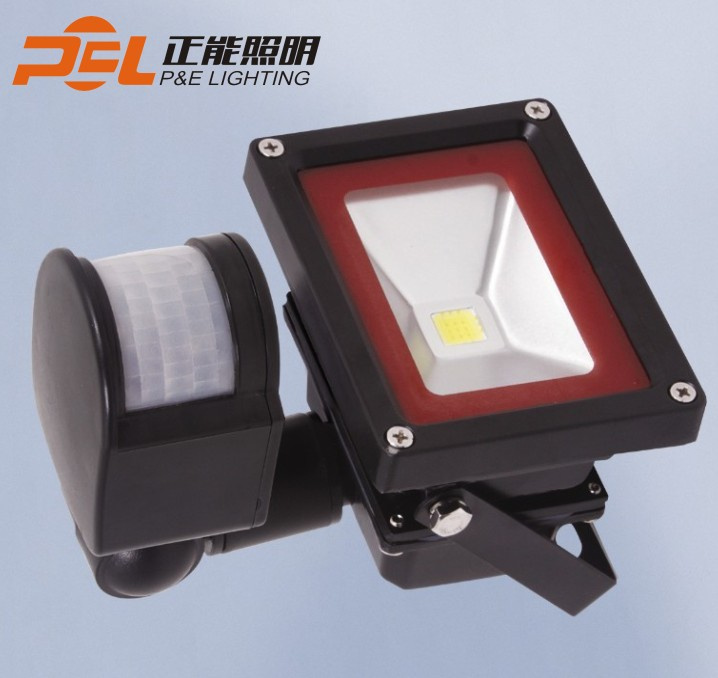

outdoor 20W led sensor flood light ,led garden light
1.FEATURE
1) No UV or IR radiation
2)Green environmental protection
3)Low power consumption
4)Low heating output
5)Special product structure for heat elimination
6)long life tme & Save electricity
7)Isolated driver PF>0.95,Driver efficiency>85%
2.PRODUCT DETAIL
3.Testing
All of the product we had do the automatic high pressure aging test with 24hours.
4.ABOUT US(Our Advantage)
1. Own packaged SMD, designed driver, to control the quality and cost
2. Speical designed PCB, even one LEDs broken, others all can work
3. CE, RoHS listed
5.FAQ
Q: Almost all LED FLOOD LIGHT are the same exterior,how to tell quality?
A: Price and exterior.
Though LED lighting products are with same or similar exterior,due to raw material cost difference is big,poor quality are all poor housing exterior with short FINs and light weight.So prices are also low.
Besides,the driver exterior is also low-end with poor IC,MOS and capacitances.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly 70-75Ra,and 80Ra with higher cost.But there are some suppliers write a high data to attract clients,please note.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher cost.
Q: Can we get support if we have our own market position?
A: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion,to find the best solution for you.
I am Joyce.For any further information,please feel free to contact us!
|
Model |
PE-LF10-A |
PE-LF20-B |
PE-FL30-B |
PE-FL50-B |
PE-FL70-B |
PE-FL100-B |
|
Demension(mm) |
120x90x76 |
185x105x120 |
226x122x115 |
288x146x123 |
385x290x110 |
425x325x200 |
|
LED Power |
10w |
20w |
30w |
50w |
70w |
100w |
|
Voltage |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
|
Luminous Flux(Lm) |
800LM |
1600LM |
2400LM |
4000LM |
5600LM |
8000LM |
|
Frenquency |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
50-60Hz |
|
Luminous Efficiency |
90Lm/W |
90Lm/W |
90Lm/W |
90Lm/W |
90Lm/W |
90Lm/W |
|
Color Temperature |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
2700-7000K |
|
Beam Angle |
120° |
120° |
120° |
120° |
120° |
120° |
|
CRI(Ra) |
Ra>75 |
Ra>75 |
Ra>75 |
Ra>75 |
Ra>75 |
Ra>75 |
|
Power Factor |
>0.90 |
>0.90 |
>0.90 |
>0.90 |
>0.90 |
>0.90 |
|
Life Span |
>50000Hrs |
>50000Hrs |
>50000Hrs |
>50000Hrs |
>50000Hrs |
>50000Hrs |
