| Price: | US $ 1/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
Technology Parameter :
Voltage: AC90V-245V/50-60Hz
Power: 180W
Lamp:18*10W 4in1/15w 5in1/18w 6in1 led
Beam angle: 25°as fittd , 15°,35°,45°, 60°optional
Life time: >5000 thousand hours
Dimmer: 0-100%
Control: DMX512, Master-slave, stand-alone, music Activate
Channel: 8 CH
Display Board: digital LCD display
Housing Material and Color: Aluminum; Black
Maximum Ambient Temperature: 45 °C
Waterproof Rate : IP65
Used in professional stage/studio/theatre/dyeling/effects
Packing size: 320x300x380 mm
N.W:8.8KG
G W: 9.6KG
Channel chart:
| DMX 8H Mode Channel | ||
| Channel | number | Function Description |
| CH 1 | 0 | General Dimmer |
| 1-255 | R.G.B.W General Linear Dimmer from dark to bright | |
| CH 2 | 0 | General Strobe |
| 1-255 | R.G.B.W General Strobe from Slow to fast | |
| CH 3 | 0 | Function of selection |
| 1-50 | Mode of DMX 8CH | |
| 51-100 | Mode of colorful change | |
| 101-150 | Mode of gradient change | |
| 151-200 | Mode of pulse variable change | |
| 201-255 | Mode of Sound Activation | |
| CH 4 | 0 | Speed |
| 1-255 | Speed ,from slow to fast | |
| CH 5 | 0-255 | Red linear dimmer ,from dark to bright |
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air | |
| 3.By sea | |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase | |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. | |
| 3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge. |
| Prod Model: | PPL-PW202 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outputs: | 3000PCS/Month |
| Dimmer: | 0-100% |
| Display Board: | Digital LCD Display |
| Packing Size: | 320X300X380 Mm |
| Type: | PAR64 |
| Waterproof: | Waterproof |
| IP Rating: | IP65 |
| Life: | 50000h |
| Electric Current Type: | AC |
| Diffuser: | Polycarbonate |
| Shell Material: | Aluminium Alloy |
| Certification: | RoHS |

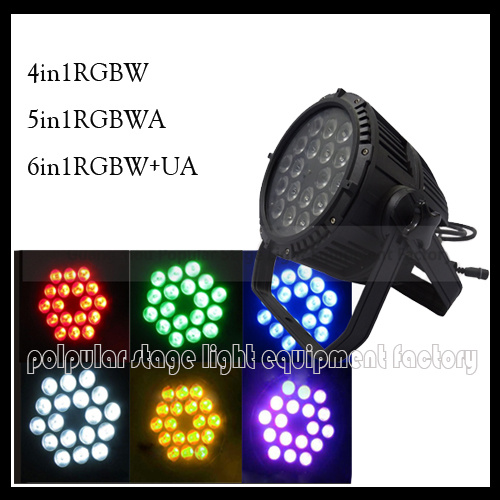

| Emitting Color: | RGBW/RGBWA/RGBW+UV |
| Power: | 180W |
| Input Voltage: | AC90-245V |
| LED Chips: | Tianxin |
