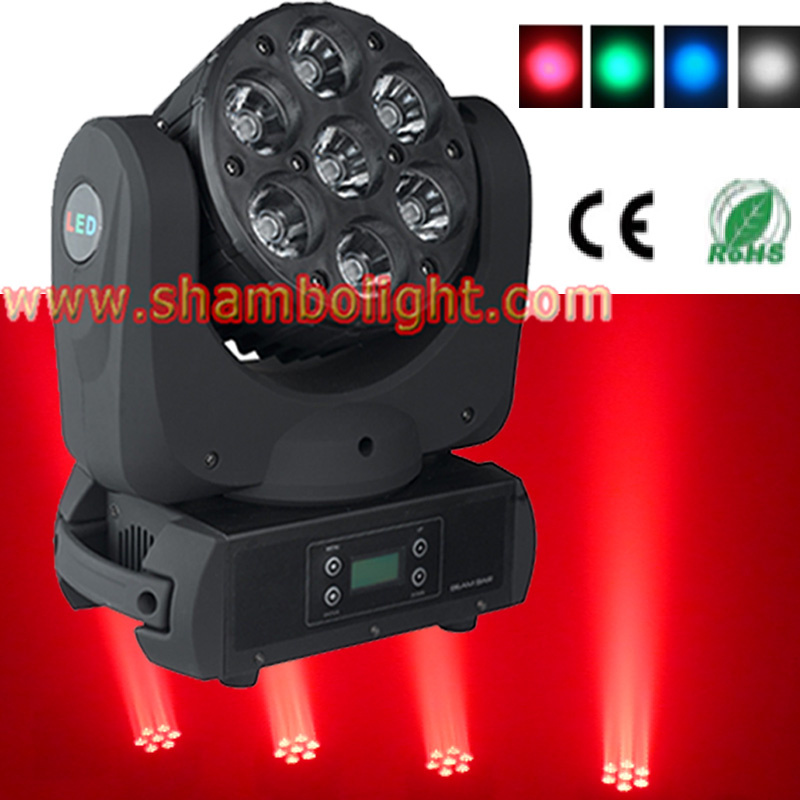

Osram LED Moving head light DMX512(SH-Beam710) description:
Product Features
*50, 000H lifetime LED, low consumption
*LED Overheating protection function
*High Efficiency 8 degree optical system
*RGBW infinite color mixing possibility
*When full power output is 2431 lumens 7 m
*When full output power is 7M, the lumens will be 1220
*0-100% liner adjustment, not blinking
*18 times/second high speed strobe effect
*Random strobe and pulse strobe function
*15 international standard DMX channels
*Built-in work auto programs with macro function
*HD TFT display
*Scanning high speed, smooth, quiet
*High efficiency and low noise fan cooling system
*540 degree Pan scanning, 270 degree Tilt scanning
*Scan position has memory and automatic reset function
*IEC plug input
*Maximum working environment is 45 degree
*IP20 waterproof rate
*3-Pin signal connector, power in/power out
Specification
*Voltage: AC90-260V 50/60Hz
*LED QTY: 7PCS (OSRAM)LED 10W 4 IN 1
*Control signal: DMX512 signal, Master/Slave, voice active and work auto
*Control Channel: 15CH
*Power consumption: 120W
*Product Size: 152(D)*265(W)*304(H)mm
*Packing Size: 260(D)*320(W)*335(H)mm
*Net weight: 4.9kg
*Gross Weight: 7kg
Osram LED Moving head light DMX512(SH-Beam710) Channels:
CH1 Dimmer
CH2 RED
CH3Green
CH4 Blue
CH5 White
CH6 Color mixing
CH7 Pan
CH8 Tilt
CH9 Pan fine
CH10 Tilt fine
CH11 X/Y speed
CH12 Strobe
CH13 Color change
CH14 Speed of color changing
CH15 Setuo ID
Osram LED Moving head light DMX512(SH-Beam710) DMX512(SH-Beam710) Effects:
|
Channel |
Instruction |
|
CH1 |
Dimmer |
|
CH2 |
RED |
|
CH3 |
Green |
|
CH4 |
Blue |
|
CH5 |
White |
|
CH6 |
Color mixing |
|
CH7 |
Pan |
|
CH8 |
Tilt |
|
CH9 |
Pan fine |
|
CH10 |
Tilt fine |
|
CH11 |
X/Y speed |
|
CH12 |
Strobe |
|
CH13 |
Color change |
|
CH14 |
Speed of color changing |
|
CH15 |
Setuo ID |
