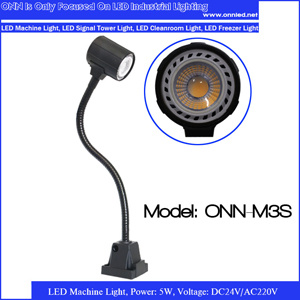

Onn M3S 24V energy saving machine Gooseneck Light:
Advantage:
1, It is used COB light, high luminous efficiency, good price.
2, Aluminum case, good heat.
3, flexible hose, spot any angle as you want.
Shortage:
IP rating is: IP 30 ( not good at dust proof and not waterproof)
Application:
Sculptor, Electrical Discharge Machine, Laser welder, Grinder, CNC Machine, The light of big processing machine
Specification:
| Model No. | Input Voltage | Range of input voltage | Range of CCT |
| ONN-M3S-C1
| AC220V (50/60Hz)
| AC100-240V (50/60Hz)
| 6000-6500K
|
| ONN-M3S-C3 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 2800-3200K |
| ONN-M3S-B1
| AC/DC 24V
| AC/DC 24±2V
| 6000-6500K
|
| ONN-M3S-B3 | AC/DC 24V | AC/DC 24±2V | 2800-3200K |
| Length of power line: | 0.7M(Standard) |
| Installation: | Fixed base |
| Power: | 5W |
| Input Current(Max): | (220V) 50mA (24V) 420mA |
| Luminous Flux: | 400-420 Lm |
|
|
| IP rating: | IP30 | | Luminous efficiency: | 70-75Lm/W | CRI: | Ra>82 | | Drive: | Non-isolation | PF: | >=0.5 | | Working temperature: | <60ºC | Beam angle: | 45° | | Life spans: | 50 000H |
|
|
|
Advantage of LED machine light:
1, Long life spans, over 50000hrs work time. Almost 10 years to use. Avoid the broken of light to delay the products.
2, CCT closed the Natural light, CRI is great, make sure the precision work.
3, No flash, no electromagnetic radiation, protect the worker's eyes.
4, Cold light, small calorific. No scald
5, Green products, save energy, 3W (LED) = 50 W (incandescent lamp)
6, More beautiful and precision appearance.
ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, located in Bao'an District, Shenzhen LED industry gathering; The company focuses on LED lighting for "Industrial Lighting" in particular "machine work lighting," and various "warning Light ";From the product onto the market nearly 5 years, has experienced 25 times of trade shows, create a utility model patent the invention 2, the appearance of 8 patents, and has achieved CE certification,IP level authentication, certification and a series of energy efficiency standards relevant certificates.ISO9001, professional R & D team for technology and quality escort, was identified as Bao'an District, Shenzhen High-tech enterprises.
ONN is focusing on LED machine light, LED machine warning light, LED freezer light and LED cleanroom light.
At present, ONN passed ISO9001, has a series of related certifications, such as CE, FCC, CCC, IP rating etc.
Professional R&D team which is the backbone for technology and quality, was identified as National High-Tech Enterprise.
