Protection grade: IP65
Antiseptic grade: WF2
Insulation grade: I
Power factor: ≥0.98
Nominal voltage: AC85~265/50Hz DC24~36V
Cable: φ6-8mm
External size: 203*204*175mm
Installation methods: Ceiling mounted, suspended ring type, suspended ceiling type, wall type
Scopes of application:

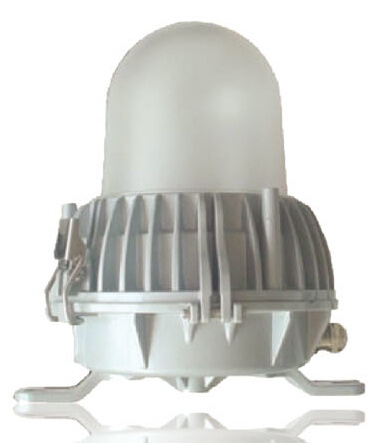

This light has narrow all-round light and axial symmetry all-round light two types. The narrow all-round light is suitable for places that is narrow and non-explosion-proof places, such as non-explosion-proof mine accessory roadways, cable tunnels, equipment maintenance tunnels, small passageways, galleries etc. The axial symmetry all-round light for suitable for small scale illumination, such as providing lighting for cabin of large equipment or workbench; it is suitable to provide supplementary lighting for local lighting need.
Features:
* Adopting international brand LED chip, with the average service life time more than 50,000 hours;
* Applicable for wide range voltage, can satisfy the requirement of large variable range of the industrial supply power voltage. Adaptable voltage range: AC/DC85-260V, separately adaptable nominal voltage: AC/DC110V,AC/DC127V,AC/DC220V,DC24,36Vcircumstances;
* Good heat dissipation, the light source is separated from the electrical parts, which can effectively control the temperature rise of each part, lengthened the service life span of the LED and other electronic components, so that the light can work stably and reliably for long time;
* The shell is die-casted by high hardness aluminum alloy, the surface is uniformly spraying treated, with excellent shock resistance and antiseptic performance;With the protection grade of IP65, effectively protect the interior components and lengthen the service life span of the light;
*Small in size and light weight, convenient to install and maintain, the light is not only attractive but also with excellent shock resistance performance;
* International brand LED, high light efficiency, energy-saving, the power consumption is just 10% of the incandescent light bulb with same luminous flux, reducing the using quantity of the light;
* Small power of 24W, 30W, even light distribution and good lighting effect, effectively reduce the total power of the lighting;
* Four kinds of installation methods of ceiling mounted type, wall type, suspended ring and suspended bar type, which can satisfy the installation requirement of different environments. Due to light distribution location limit, the axial symmetry all-round light type just has two kinds application methods, that are ceiling mount and wall type.
Jinan Qichen Lighting Electrical Co. Ltd is a high-tech company specialized in researching and manufacturing industrial lightings, with years of experiences. Qichen products are widely used in power plants, petroleum and chemical industries, mines, railways, metallurgical, manufacturing and other industrial enterprises.
Qichen core products all have our own independent intellectual property rights and all the products are manufactured strictly according to the international ISO9001:2000 standard., with customers from Europe, Australia, Asia, Africa etc. The products have been highly praised by both domestic and foreign customers.
Qichen is dedicated to providing the customers with all-day, all-round lighting solutions. To promote a new generation of safe, high-efficiency, energy-saving, and environmental lighting products from the beginning to the end is our eternal working goal.
Qichen is a factory that is looking to the long term. We not only sell our products, but also our credit and reputation. The quality has to be second to none, service has to be timely, polite and knowledgeable and the offering has to be the best value in the market.
