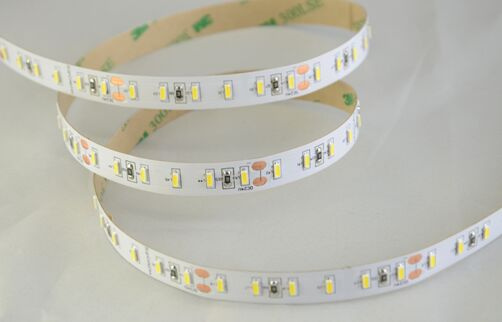

Product feature
* 5 meters roll, every 70 meters lamp, the theoretical power per
meter 14W ,Power rating:70W/5M , angle light 120 degrees.
24-26lm of each light bead can be customized according to
needed.
*curved, soft, soft and compact, back with 3M double-sided
adhesive can be installed in the concave convex surface,
easy to install.
*each 5 or 10 cm ,three or six beads can be used as a unit of
shear, cut does not affect other parts. 5 meters in length can
be adjusted according to production requirements
*low power consumption, low fever, no glare, impact
resistance, energy saving and environmental protection.
*can be customized to glue dust (IP65), (IP66), silicone casing
waterproof glue waterproof (IP68);
*LED Life time: Mean time between failure(MTBF):50-100K
hour
Technical parameters
| Mode | LED QTY/M | Chromaticity | Lumen/led(lm) | CRI(Ra) | Voltage (V DC) | Current (A/m) | Power±10%(W/m) | FPC Width/thickness | Color |
| LM4014-WN-HL70 | 4014SMD
70PCS/M | 4000-4200K | 24-26lm | 82-90 | 24V | 0.55A | 13W/M | 10mm/3 Ounce | Natural white |
| 6000-6500K | White |
| 2600-2800K | Warm White |
| 3000-3200K | Warm White |
| 617-627nm | *** | Red |
| 464-474nm | *** | Blue |
| 515-525nm | *** | Green |
| 585-600nm | *** | Yellow |
Advantages of constant current light:
1. high brightness consistency:
As a result of low dropout linear constant current IC, the pressure drop in a certain range,
LED operating current is constant, and therefore highly consistent brightness LED module
before.
2. can extend the LED lights with connection length:
Under normal circumstances, the use of linear constant current IC of light can be
increased with the length of 10-20 meters, and the brightness is not dimmed.
3 .can extend lamp with life.
LED constant current IC program modules, LED work in constant current state, so even
if the temperature rises, LED operating current is always constant, does not appear to
reduce the life of accelerated aging issues. When abnormal overheating situation, the
constant current IC also has overheating protection function, automatically dimming PWM
output, reduce the temperature.
4. allows the input voltage error of 20% -30%, constant current output error of ± 5%
5. to reduce the number of power use, reduce project costs, installation more convenient:
Although the use of IC solutions will increase the production cost of LED modules, but
because the use of IC modules can be cascaded to increase the length of the module, thus
reducing the number of power use, you can reduce the cost of the project, and the
installation more convenient. with power supply cable (regional), suggest that are connected to the power line.
Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL and SGS, which is engaged in researching, manufacturing and selling new LED lighting products.
Now Leomay products mainly cover LED Strip Light, LED Rope Light, LED Linear Light, LED Panel Light, LED Flood Light, LED Tube, LED Bulbs, LED Wall Washer etc. All of them are certified by CE, EMC, LVD, RoHS, FCC, some of products are UL, Energy Start, ERP compliant.
Meanwhile, Leomay has advanced LED luminaire manufacturing and test facilities such as Imported Panasonic Auto Soldering and SMD Machines, Programmable Constant Temp and Humidity Testing Machine, IP65 and IP68 Waterproof Production Lines, High and Low Temperature Test Chamber, Optical Testing Devices such as Everfine Integrating Spheres and Distribution Photometer.
Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.
Leomay products are highly recognized and sold very well more that 30 countries and regions, such as Germany, Austria, Swiss, Italy, Hungary, Slovakia, Croatia, Slovakia, Slovenia, Finland, Denmark, Spain, UK, Russia, Canada, US, Costa Rica, Brazil, Argentina, Singapore, Hong Kong, Taiwan etc.
As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.
