IP68 Structure water proof ( private tooling & patented product), unique internal design, good at waterproof and anti-corrosion.
RGB synchronization with patented RGB controller
Thermal plastic body & pc cover, easy to install and excellent performance on heat dissipation.
Constant driver to make sure LED light working stably, avoid any flashing and noisy
High quality and brightness LED source.
Projection distance: 5-6 meter
Color: Single color - white, red, green, blue, yellow
Color: RGB, 14 kinds of color changing

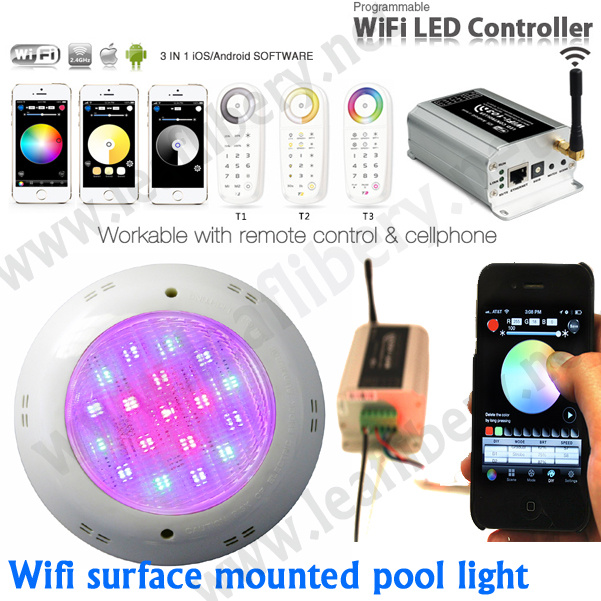

6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control, External control, Remote & switch remote control, Automatic control
Beam angle:SMD5050/3528/5730-120°, high power-15°25°/30°/45°/60°
Life span 30000 hours
Overcurrent protection
Specification | Parameters |
Model No. | LF-P56M-315D5-T2 |
LED Qty | 315 pcs SMD3528 |
Input Voltage | AC/DC 12-13V |
Frequency | 50/60 Hz |
Power | 18±1w (White) 17±1w (RGB) 13±1w (R) 18±1w (G) 18±1w (B) |
Color Temperature | w.w.3000-3500K p.w.6000-7000K c.w.8000-10000K |
Luminous Flux | P.W. 1200Lm±10% W.W.1100Lm±10% C.W.1000Lm±10% 380Lm±10%Lm (R) 750±10%Lm (G) 180±10%Lm (B) RGB: 430±10%Lm |
Color Rendering Index(CRI) | P.W. Ra≥70 |
Replace halogen | 100W |
Wave length(R/G/B) | R/G/B: 620-630/515-525/ 460-470 nm |
Beam angle | 25°/120° |
Dimension | 290*150.6mm |
Working temperature | 0~40ºC |
Storage Temperature | 0~50 ºC |
Constant driver | yes |
IP rating | IP68 |
