Home LED Light Products New Style IP65 LED Tunnel Light for Outdoor Using

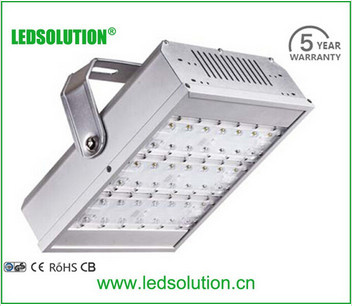

New Style IP65 LED Tunnel Light for Outdoor Using

New Style IP65 LED Tunnel Light for Outdoor Using
Price: US $ 315/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
120W tunnel light MEANWELL driver, high efficacy IP66 outdoor tunnel light for tunnel/warehouse/garage/parking lot



Specifications



Electrical Specifications

Model No.

LS-TL120P

Nominal Wattage

120W

Nominal Voltage

AC 100-240V/277V

50/60HZ

Maximum Current

AC 0.41A-120V,0.21A-240V,0.18A-277V

Optimal Operating Temperature

-40ºC to +70ºC

Power Factor(PF)

>0.9

Driver Efficiency

>90%





Photometric Specifications

Lumen Output

11400lm

Lens Type

Type IS

CRI

> 70 CRI

CCT

4000K, 5000K, 5700K







Mechanical Specifications

Ratings

IP66, IK10

Lumen Maintenance

> 60,000 hours -L70(9K), @25 ºC (77 ºF)

Heat Radiator

Anodized Aluminum

Lens

PC

Fixture Dimension

430 x370 x200 mm
17.0 x14.6 x7.9 inches

Fixture Weight

5.2 kg /11.5 lbs




Product Benefits

PHILIPS LUMILEDS LED LUMINOUS SOURCE

The LEDSOLUTION P-Series LED Tunnel Lights are utilizing PHILIPS LUXEON T LED luminous source, providing excellent lumen output - up to 95 LPW, long-lasting stability and splendid sight.



Each LUXEON REBEL ES owns eletrostatic protection component, maximally avoid the damage of electrostatic.



MEAN WELL  LED DRIVER



Full Range of LEDSOLUTION P-Series LED Tunnel Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.

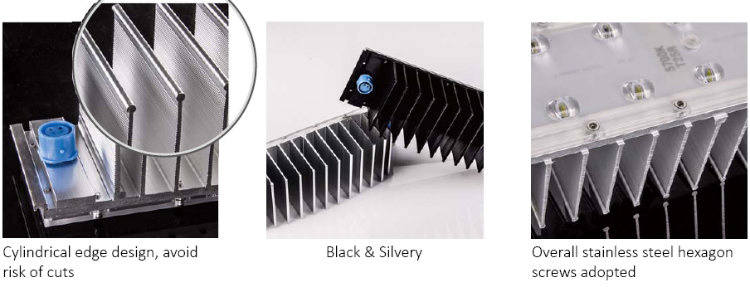

LEDSOLUTION 3 GENERATION LED MODULE



Exquisite design with powerful thermal output, with more reliable waterproof performance.
120W Outdoor LED Tunnel Lamp Meanwell Driver, IP66 Tunnel Lamp with CE, UL, RoHS Certificate



XTREME LUMINAIRE DESIGN

Equipped with excep onal LEDSOLUTION 3 generation LED module, the P-Series LED Tunnel Lights give best luminous output, stability and extra long life. P-Series LED Tunnel Lights are intended to build the most cost-performance luminaires ever.



LEDSOLUTION completed the R&D independently, and reserve all related patents for P-Series LED Tunnel Lights.





Easy assemble/disassemble, neat wiring & connection, up to 95 LPW luminous efficiency, IP66 and IK08 Rated, 90%+ driver efficiency, over then 100,000 hours opera on life and 5 years warranty.



Detailed Features
120W Outdoor LED Tunnel Lamp Meanwell Driver, IP66 Tunnel Lamp with CE, UL, RoHS Certificate


Package


Packing Type
1unit(s) /ctn.


Packing Dimension

430 x370 x200 mm
17.0 x14.6 x7.9 inches


Packing Weight
5.2 kg /11.5 lbs

Prod Model: LS-TL120P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp Power: 120W
Lamp Luminous Flux(Lm): 11400
CRI (Ra>): 80
Working Temperature: -40 - 70
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Housing Color: white
Lifespan: >50000 hours
Warranty: 3 Years
Certification: UL
Voltage: 220V
With Light Source: With Light Source
Beam Angle: 120
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
