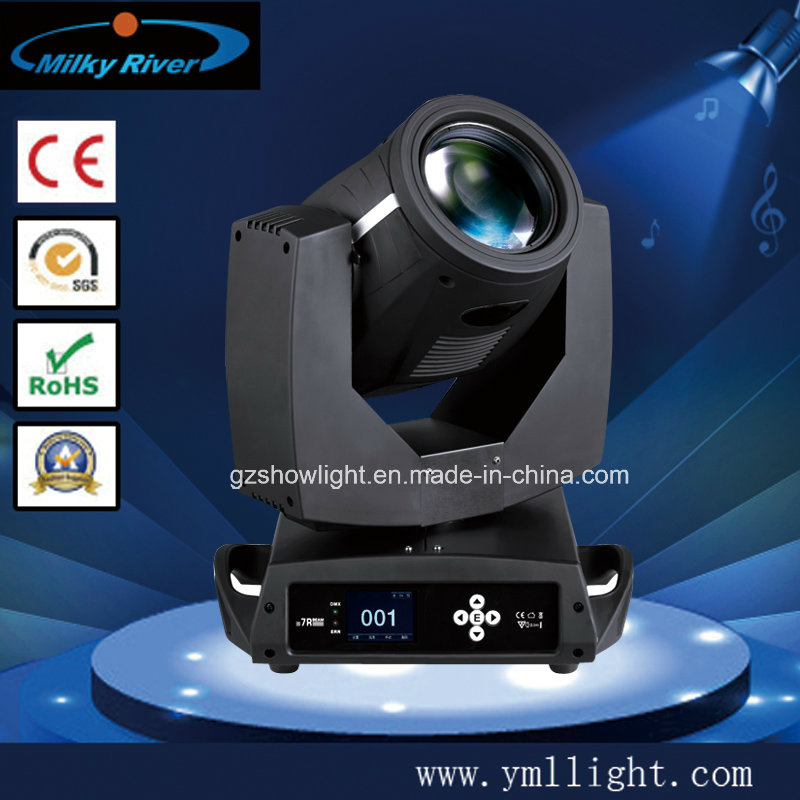

New stage lighting sharpy beam 230, beam moving head 230, 7r 230w beam lights
Technical Parameter
Power: AC 110-240v, 50/60Hz
Lamp: Philips 5R200W/7R230W or YODN5R
Power consumption: 230w/260W 50HZ 350VA
Optics: 3 lens group, the zoom 0°-3.9°electronic focusing;
20 meters 50000LUX
Channel Mode: 16CH/20
Horizontal scan: 540°(16bit precision scanning)
Vertical scan: 280°(16bit preision scanning)
Color wheel: 14 colors+white, with bi-directional rotation of the rainbow
Effect
Pattern plate: 17 gobos+white
Prism plate: 8 prism, can reverse the direction of rotation, and a prism
Positioning
Strobe: double guillotine strobe the highest frequency can be 13 times per
Second , and can select a random strobe and pulse strobe
Dimming: 0% to 100% linear dimmer
Atomization: 0% to 100% linear atomized liquid crystal display
ch mode | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| 16/20 | color wheel | stop/strobe | Dimmer | Static Gobo Change | Prism Insertion | Prism Rotation | Effects Movement | Frost | Focus |
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
| Pan | Pan Fine | Tilt | Tilt Fine | Function (unused) | Reset | Lamp control | Pan-Tilt Time | Color Time | Dimmer Prism Frost Time |
| 20 | Lamp | Lamp |
| Gobo Time | Philips 200w 5R | Osram 230w 7R |
Payment:
30% down payment to confirm order, the balance should be pay before dispatch.
Sample testing
Can by DHL, UPS express for tesing or other ways clients asked
Product guarantee
1 year guarantee, 3 years in China
Service
Our professional staff offer 24 hours on line technology and other sevvice, if urgent, please call 0086 18126857039
Guangzhou Show Light Stage Equipment Co., Ltd formed from a lighting factory with 21 years experience, which research and developed the professional stage lighting control, for recent years, develop the LED moving head, profile light, spot light, etc. Our main products are including moving head, LED lighting, stage effect, follow spot light, controller. Widely used in all kinds of performances, theater, TV studio, multi-functional meeting rooms, church, musical hall, parks, etc.
For so many years, we devote to technology innovation, we independently researched and developed IGBT sine wave dimmer in 2005. In 2009, we started to research stage LED lightings in order to solve the LED lighting dimmer curve low end flashing problem. In 2012, we launched 7 mixed color LED stage lighting and have patent on this. We adopt the second light distribution technology on LED lightings.
We have already won appreciation and good comments from the experts and domestic and overseas clients. We will continually make our efforts on this lighting field.
Guangzhou Show Light Stage Equipment Co., Ltd welcome you to join us to grow up together!
