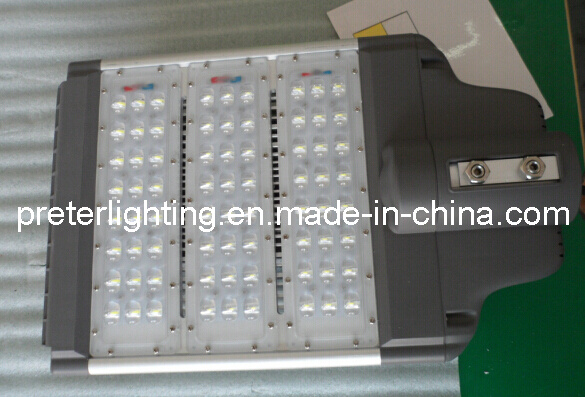

Model NO.: PL-ST72W 8600lm
Descriptions
The 72W LED Street Light has a patented ultra-slim IP65 structure of all aluminum housing and modular heatsinks, featuring unique dust-proof, water-proof and airflow duct designs. Exterior coating and anodizing, structural strength and thermal path create excellent heat dissipation, weatherability and durability. A total of 72 Bridgelux 120lm/w LEDs. Test-proven waterproof, anti-corrosion and wind-resistant results, and 50000-hour service life make it an optimal choice for new installation or retrofit lighting applications in highways, streets, roads, pavements, square, park and other open fields.
Features
>> Patented ultra-slim appearance, all-aluminum structure and modular heatsinks create perfect cooling solution to LEDs
>> Unique dust-proof, water-proof, and airflow duct designs relieve maintenance efforts in outdoor applications
>> Robust anti-corrosion through exterior coating and anodizing
>> Test-proven wind resistance under 56m/s wind or level-16 hurricane
>> Independent 120W power driver module with high efficiency, reliability and serviceability
>> 72 Cree/Lumen LEDs, light output up to 8600lm, CRI
>> Guaranteed 50, 000-hour service life, CE
|
Specifications |
|
General |
|
Name: |
PL-ST72W LED street light |
|
|
|
|
Materials: |
Aluminum , PVC, Glass |
|
Color: |
Grey |
|
|
|
|
Electrical |
|
Power driver: |
Built-in independent 72W constant-current power driver |
|
Power: |
72W |
|
Input: |
85-265V AC, |
|
Output: |
36V DC, constant-current control |
|
PFC: |
>0.95 |
|
Efficiency: |
92% typical |
|
|
|
|
Optical |
|
LEDs: |
72 Bridgelux |
|
Flux: |
72 00lm typical |
|
CCT: |
4000K / 6000K or custom |
|
CRI: |
70 / 80 |
|
Optical efficacy: |
120lm/W, typical |
|
|
|
|
Physical |
|
|
|
|
Pole interface: |
8 meters |
|
Temperature: |
-20-+60°C (operating), -40-+85°C(storage) |
|
Weight: |
8kg |
|
IP rating: |
IP65 |
|
Standard: |
CE, RoHS |
|
Lifespan: |
50,000 hours |
|
Warrantee: |
3 years |
