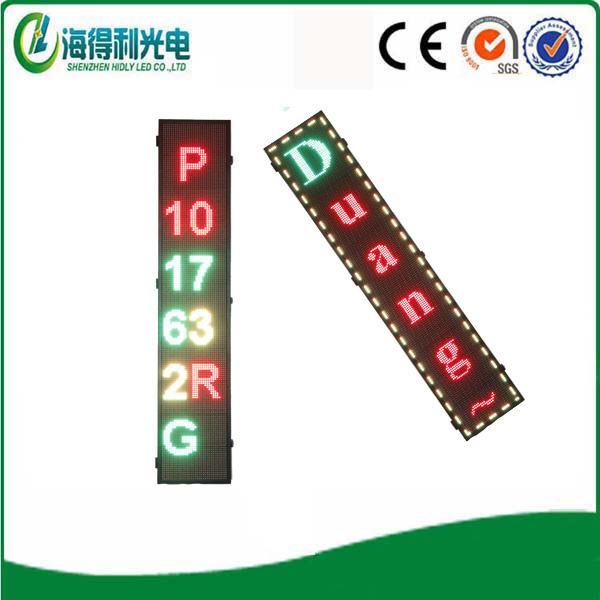

2015 New Design Tri colors P10 Outdoor Stand LED Display(P1032176RG)Features:
1.P10 Outdoor Stand LED Display which is made by first-class LED Lamp, can display text, graph, animation,video, real-time with many actions.
2. High brightness,Good flatness,High contrast
3. Easy Installation & Using. it can meet the request of the customers according the application environment free adjust.
4.With a wide range of viewing angles, the horizontal and vertical all come to more than110 degrees.
5. Long-term Brightness capacity throughout product lifetime
6 Can extend temperature and hygrometer display (need extra charge).
7.High energy saving display can save 50% more than traditional display.
Tri Colors P10 Outdoor Stand LED Display basic information:
1.Pixel pitch: 10mm
2.Module size: 320*160mm
3.Composing Parts : LED display, software, data line and adapter
4.LED Arrangement: 1R1G
5.Usage: Outdoor
6.View Angle (H/V):110/50Deg
7.Module life: 10,0000 hours
8.Control way: Remote control and computer
9.Working Environment : Temp:-20°C~60°C,Humidity:10%~90%
10..Brightness: >=7500cd/m²
11.Drive way: 1/4 constant current driving
12.Voltage : AC220V±10%50Hz or AC110±10%60H
13.Warranty: 1 year
14.Certification:CE, UL, CCC,
15..LED type: DIP
16.Structure of led display :
Work flow:led module+power source+control card+cabinet=led stand display
Here are our modules common size:
| Indoor full color serial |
| P5 | 1R1G1B | 32*32 | 160×160 |
| P6 | 1R1G1B | 32*16 | 192×96 |
| P7.62 | 1R1G1B | 32*16 | 244×122 |
| P10 | 1R1G1B | 32*16 | 320×160 |
| P6 | 1R1G1B | 32*32 | 192×192 |
| P7.62 | 1R1G1B | 32*32 | 244×244 |
| Semi-outdoor serial |
| P10 | 1R |
32*16 |
320×160 |
| P10 | 1W | 32*16 | 320×160 |
| P10 | 1B | 32*16 | 320×160 |
| P10 | 1Y | 32*16 | 320×160 |
| P12.5 | 1R | 32*16 | 400×200 |
| P10 | 1R1G | 32*16 | 320×160 |
| P12 | 2R1G | 16*16 | 192×192 |
| P16 | 2R | 16*8 | 256×128 |
| P16 | 2R1G | 16*8 | 256×128 |
| P20 | 2R | 16*8 | 320×160 |
| P20 | 2R1G | 16*8 | 320×160 |
| P25 | 2R | 16*8 | 400×200 |
| P25 | 2R1G | 16*8 | 400×200 |
| Outdoor full color serial |
| P10 | 1R1G1B | 16*16 | 160×160 |
| P12 | 1R1G1B | 16*16 | 192×192 |
| P12.5 | 1R1G1B | 16*16 | 200×200 |
| P16 | 2R1G1B | 16*16 | 256×256 |
| P16 | 1R1G1B | 16*8 | 256×128 |
| P16 | 2R1G1B | 16*8 | 256×128 |
| P20 | 2R1G1B | 16*8 | 320×160 |
Note:
P5 means light distance
1R1G1B means full color 1 red 1 green 1blue
32*32 means pixel pitch
160*160 means single moudle size
We also accept all kinds of custom-made.
P10 1RED 1GREEN module |
Item |
Parameter |
Item |
Parameter |
Pixel pitch |
10mm
|
Module life
|
10,0000 hours
|
Module size
|
320mm*160mm
|
Control way
|
Asynchronism
or Synchronis
|
Panel pixels
|
16*32Pixels |
Max consumption
|
400W/m²
|
LED Arrangement |
1R1G |
Power
|
250W/m²
|
Pixel density
|
10000 dots/m²
|
Brightness
|
≥7000cd/m²
|
View
Angle(H/V) |
110/50Deg
|
Drive way |
1/4 scanning
|
Voltage
|
AC220V±10%50Hz or AC110±10%60Hz |
Working Environment |
Temp:-20°C~60°C,Humidity:10%~90%
|
Packaging
1) Neutral packing.
2) Anti-Shaking Wooden Package
3) Carton contents between EPE to adopt environment-friendly packing
4) Standard Packing & Wooden Case
Shipment : by DHL.FedEx,UPS.TNT.Air or sea.
We can certainly ensure our led stand display can be delivered fast and safety.
Our Services
1.We provide the best service to our every clients. before the order,send all the information to our clients. to help him make the decision. include the size. color. pictures,pack way and shipping way.
2.During the order, we need update the orders and feedback to him. keep him update with his order. such as how is his order,when will be finished,and also take the aging test pictures for his reference. at the same time. provide the packing pictures .after the goods delivery out. provide the tracking number. so that the clients can track his goods at any time.
3.The after-sale service: provide the one year warranty.during this year.the clients can obtain maintain service in free. and also will provide some accessories to the customers.
4.Some products we can provide the certifications. such as CE certification. UL
Our main products include:
1) LED signs
2) LED display
3)LED mini display
4) LED outdoor sign
5) LED gas price sign, led number display, led gas display screen ,led electronic digital display,led gas price, screen,led digital display,wirless led display board, flexible numer display,led digit screen display ,led number board, led screen price
6) LED cross display and so on.
FAQ
1. Are you manufacturer led stand display? If yes, in which city?
Yes, we're factory with 2600 square meters. And we're in DONGGUAN city, GUANGDONGProvince.
2. Can I visit your factory ?
We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is SHENZHEN GUANGZHOU HONGKONG airport.
3. Can you provide me your LED stand display catalogue?
We specialize in producing and developing all kinds of led displays.As a reliable LED display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price of led stand display.
If you like our 3 Colors P10 Outdoor Stand LED Display.You are welcome to contact with us at any time.
