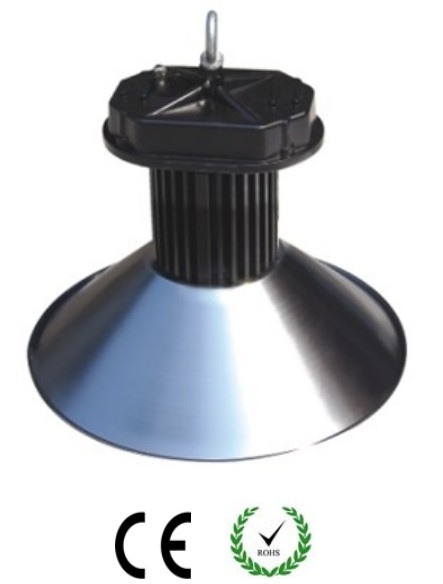

Features of LED High Bay Light
Using high brightness LED as light source, using imported high brightness onductor chips, with high thermal conductivity, low lumen depreciation, pure color without light shadow.
Special structure and materials processing, meet IP65 standards
Using electroplating PC reflectors, effective improve the reflectivity, and ensure that the luminous flux output.
Wide input voltage, and high energy efficiency
High quality light with a color rendering index of >70/80
Using high brightness LED with high stability, the thermal lumens can maintain more than 93%.
Product Offering
Type reference Wattage CCT Luminous Beam Angle
ECO-HB-001 80W 3000K 6400lm 120°
ECO-HB-001 80W 6000K 8000lm 120°
Key Features and Benefits
80W LED high bay of high quality
Protection grade for IP65
Black/silver housing color
120° Beam angle
AC 85~265V, 50-60Hz, input voltage
Available for four different color temperatures:
2700-3200K - warm white
4000-4500K - neutral white
5800-6300K - cool white
Other Colors
High color consistency (standard deviation color matching <5)
Shockproof and vibration proof
50, 000 hours lifetime
UV, NIR radiation free and Mercury free
3 years Guarantee and Lifetime technical support
Packaging Information
Lamp Type Dimension (mm) GW (kg) NW (kg) Qty/Carton
ECO-HB-001 300*300*300 8 5.8 1
Ordering Guide
Voltage: AC 85-265V
Wattage: 80W
CRI: >70 / >80
CCT: WW: 2700-3200K
NW: 4000-4500K
CW: 5800-6300K
Beam angle: 120°
Housing finish: Black/silver
PF: >0.9
Connect wire: L, N, G
|
Lamp Type |
ECO-HB-001 |
|
Dimension (mm) |
300*300*300 |
|
GW (kg) |
8 |
|
NW (kg) |
5.8 |
|
Voltage |
AC 85-265V
|
|
Wattage |
80W
|
|
CRI |
>70 / >80
|
|
CCT |
WW:2700-3200K NW: 4000-4500K CW: 5800-6300K
|
|
Beam angle |
120°
|
|
Housing finish |
Black/silver
|
|
PF |
>0.9 |
|
Connect wire |
Connect wire |
|
Life span |
5000 hours |
Putian ECO Energy Engineering Co., Ltd, is the oversea sale department of Wanban lighting Group Company in Mainland China. We are a professional manufacturer of LED lighting products.
Our products scope covers LED Bulbs, LED Tubes, LED Down lights, LED Spotlights, LED PL Lamps, LED Candles Lamps, LED Panel Lights, etc. (with certification of CE, RoHS, CB, UL, FCC, SAA, IC). M-COB namely Multi-Cups on Boards, is our unique and patented encapsulation. This Tech use single layer of Aluminum as the plate so as to take light and conduct heat easily. And with special using of material, the tech make the LED Lighting products high-voltage withstanding (4000V).
Highly fashionable styles, reliable quality and attractive prices are our advantages. We particularly cherish cooperation with customers. We deeply believe that these factors enable us to be a long-standing business enterprise in today''s competitive markets. We spare no effort in meeting each customer''s requirements and winning their satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
Clients are welcome to buy our standard produts, or send us OEM requests. You will be impressed by our quality and prices, please contact us now!
