1. LEDs: 12PCS * 10W, RGBW 4in1
2. Electronic Zoom: 8-54 degree
3. Flicker Free
4. Thermal management system
Specifications
1. LEDs: 12PCS * 10W, RGBW 4in1
2. Electronic Zoom: 8-54 degree
3. Flicker Free
4. Thermal management system
LED Moving Head Wash Zoom, 12× 10W, RGBW 4-in-1
Technical Data:
* Power Supply: AC100-240V, 50/60Hz
* Powersupply: Auto Switching Power Supply
* Power Consumption: Max. 160W
* RGBW Color Mixing
* LEDs: 12PCS * 10W, Quadcolor RGBW 4in1, Brand Osram
* White Color Temperature: 6, 500K
* LED Lifespan: >50, 000 hours
* Flicker Free (Refresh Rate >400 Hz)
* Drive Mode: Constant Current
* Drive Current(mA): Max. 750
* Beam Angle: 8° -54°
* Control Mode: DMX, Autorun, Master/Slave
* DMX Channels: 15CH
* Built-in movement macros
* Electronic Dimmer: 0-100% linear dimmer
* Electronic Strobe: 1-8 flashes/second
* Electronic Zoom: 8° -54° , linear adjustment
* Cooling: Forced Air Convection
* Thermal management system ensures long life of LEDs
* Setting and Addressing: Blue LCD
* Cooling fan's speeds adjustable
* DMX Data In/Out: XLR 3Pin
* Power In: Blue Powercon
* Pan: Max 530° , with 8 or 16 bit resolution.
* Tilt: Max 255° , with 8 or 16 bit resolution.
* User-selectable Pan/Tilt ranges
* Automatic Pan/Tilt Correction
* Pan/Tilt Motors: 2-Phase
* Housing: Heatproof Engineer Plastic
* Housing Color: Black (White optional)
* IP Rating: IP20
* Environment Temp: -30° C-50° C
* with mounting bracket, with 2PCS quarter-turn fasteners
* with double handles (Left & Right)
* Dimensions(mm): L346*W205*H435 (head vertical placed)
* Net Weight: 9.8kg
|

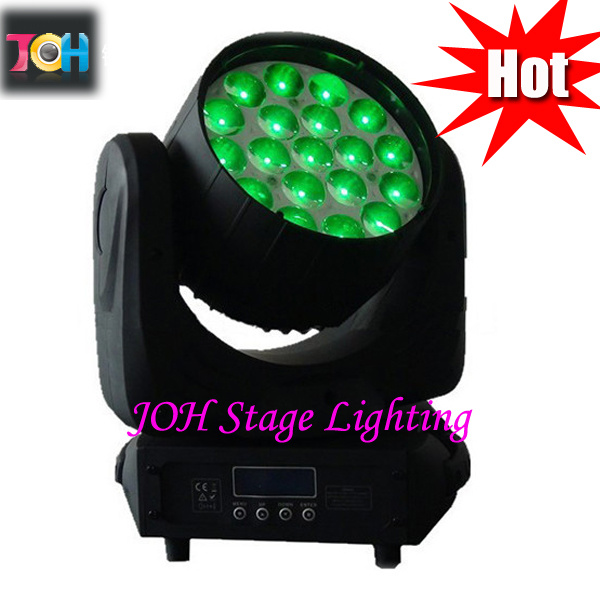

RGBW quad-color 19 X 12W zoom led beam moving head |
|
Electrical |
Input Voltage |
AC 100-240V, 50/60Hz |
|
Power Consumption |
260W |
|
Light Source |
Hi-power LED |
19 * 12W 4in1 LEDS |
|
Average service life |
50,000 hours low power consumption |
|
Operation |
Modes |
Stand-alone |
|
Control |
Control Channels |
16 chs |
|
Control Protocol |
master & slave,sound control,auto movement,DMX512, 8 built-in Program |
|
Movement |
Pan |
540°/ 630° |
|
Tilt |
265° |
|
Pan/Tilt Resolution |
16 bit |
|
Colors |
Effects |
RGBW Color mixing system LED rainbow effect |
|
Color Temperature |
0~100% linearly, Adjustable from 3200K~10000K |
|
Optics |
Zoom Angle |
10-58° (beam effect to wash) |
|
Dimmer |
0~100% linearly electronic Dimmer (16bit) |
|
Strobe |
1~25 F.P.S. Plus effect, eonochrome or color mixing strobe |
|
Physical |
Color |
Black |
|
Display |
LCD screen |
|
Cooling |
Fan cooling system |
|
Net Weight |
11kg |
|
Packing Dimensions |
450*370*420mm |
|
Environment |
Dry location |
|
Max. Ambient Temperature |
45°C |
|
Application |
zoom led moving head Light is applicable to all kinds of stage, dance halls, discos, bars, hotels,
theaters, night club, KTV, concerts and other places of entertainment. |
