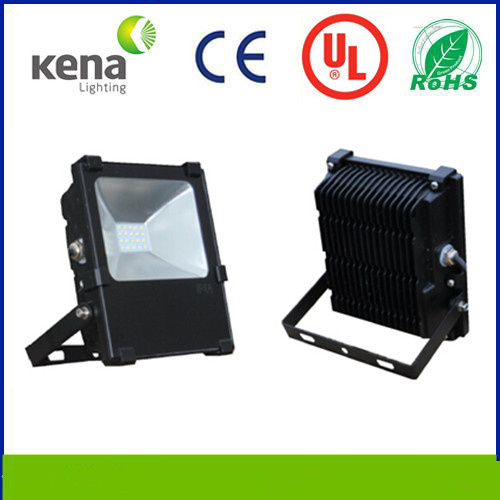

New Cheap LED SMD Flood light with CE ROHS
General Description
KNFLP175 LED floodlight is kena lighting application of new SMD LED light source, high purity aluminum
reflector, high thermal conductivity aluminum lamp housing high intensity tempered glass, high efficiency,
constant current and constant voltage source research and development of high photosynthetic efficiency of
green lighting products. And traditional floodlights contrast, this product has high efficiency, safety, energy
saving, environmental protection, long life, fast response speed, high color rendering index unique advantages. Can be widely applied to the square, city, area and other parts of lighting, is an alternative to traditional, high energy floodlight optimal scheme. And factories, schools, gardens and other indoor and outdoor lighting is the best choice.
Features
1. 3030 LED(LM80) , high luminous efficiency, high color rendering index;
2.The radiator and lamp shell integration design, LED directly with shell closely connect with cooling, fully
guarantee the LED life;
3.The lamp adopts aluminum alloy die-casting molding, can effective heat dissipation, Waterproof, dustproof, waterproof level through the IP65 standard;
4.No bad glare and stroboscopic, eliminating the common floodlights undesirable glare caused by the glare, visual fatigue and disturbance;
5.Activated without delay, power that is the normal brightness, without having to wait for a long time, the
elimination of the traditional lights start process;
6.Green pollution-free,no lead, mercury or other elements of environmental pollution, no pollution to the
environment;
7.Selection of wide input voltage (AC100-240V), high efficiency, constant current and constant voltage
switching power supply (also use the DC/DC switching power supply).
Applications
1.Factory, stadium, docks, airports, shopping malls and other
2.Billboards, buildings, lawn, garden design
3.Cabinets, museum, gallery, art gallery
Technical Parameters
Power parameters
Frequency range | 47~63HZ |
Input power | 10±2W |
Input voltage | 90~305VAC |
Input current | 0.06A/230VAC |
Output voltage | DC30-34V |
Output current | 0.6A±0.2A |
Power efficiency | ≥93% 230VAC at full load |
Power factor | PF≥0.98/90VAC PF≥0.95/230VAC PF≥0.92/265VAC at full load |
Lighting parameters
Product model | KN-FLP175-20W |
Led quantity | 20pcs(SMD3030) |
Led working voltage | DC3.0~3.4V |
Led consumption | 18W |
System consumption | 20±2W |
Led Luminous efficiency | >120lm/w |
Led initial flux | >2400lm |
Junction temperature | ≤80 degree |
Lamp's luminous efficiency | ≥80lm/w |
Illumination uniformity | >0.6 |
Lumen maintenance | 70%(50000hrs) |
Color rendering index | ≥80 |
Light design | LED+reflectors with twice light distribution |
Led working temperature | -40 degree~ +60 degree |
Storage temperature | -40 degree ~+75 degree |
IP rating | IP65 |
Lifespan | ≥50000hrs |
Appliance Class | Class I |
The color of the lamp shell | Black |
Mounting | Wall mounted |
Note: Different color LED light performance somewhat deviation, deviation ≤ 5%
Note
1.If the lamp outer cable or cord is damaged, must be performed by qualified professionals for replacement, In order to avoid danger
2.If it is found that the abnormal lamps work, must first cut off the power input
3.Please input end of the power supply to the corresponding protection measures, and guarantee the input voltage stability.
4.Please mount the lamp in a dry, ventilation, clean environment, and regular cleaning and maintenance
5.Lamps have high voltage parts inside, do not disassemble, so as to avoid the electric shock
Product quality assurance
All of our product's warranty period is 3 years for the built-in constant current power supply, LED light
source guaranteed 5 years. In the normal conditions of use, quality assurance is based on product right
preservation, installation, use and maintenance. Due to improper installation and use of product operationprocedure, and cause damage to the product, do not belong to this warranty scope. To guarantee qualityproblems, the company will choose the repair, exchange (components) or replacement products give thesolution method, exceed the time limit will be appropriate charge cost of raw materials, labor.
