New Arrival Rayfall H1LC CREE Xm-L U2 577 Lumens Headlamp

Quick Details

Type:	Headlamps	Light Source:	LED	LED Light Source:	Cree XM-L U2
Place of Origin:	Guangdong China (Mainland)	Brand Name:	Rayfall	Model Number:	S023048
Usage:	Camping	Power Source:	Rechargeable Battery	Lighting Period (h):	3
Battery Type:	Lithium Ion	Lamp Body Material:	Aluminum	Warranty(Year):	1
Material:	Aluminum	Emittor Type:	CREE XM-L U2	Modes:	Hi > Mid > Low > SOS
Lumen:	577 lumens	Warranty:	1 year

Packaging & Delivery

Packaging Detail:	Packed in foam and then in carton box.
Delivery Detail:	1-5 work days

Specifications
1. LED Brand:Cree XM-L U2
2. Brightness: 577 Lumens
3. Modes: 4
4. Good quality and reasonable price.

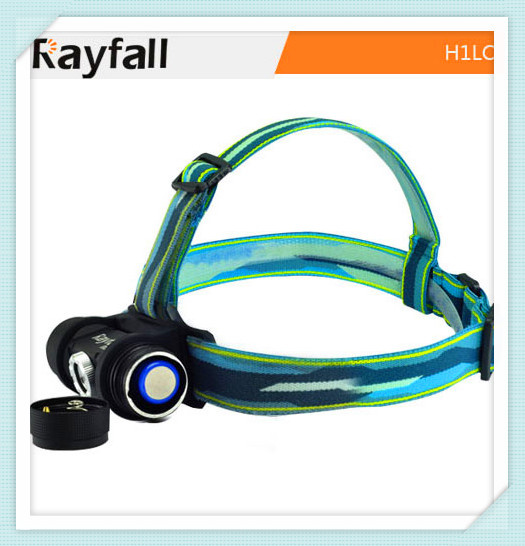

Rayfall H1LC Cree XM-L U2 4-Mode 577 Lumens Headlamp (1 x 18650 / 2 x CR123A)

SKU: S023048

Rayfall H1LC is a model of multifunctional powerful LED aluminum headlight. it is
with unique design of USB charging LED indicator and three model button, which can
change the light mode conveniently. H1LC runes with 18650 rechargeable battery or
CR123 lithium battery. With head mount and clip it is very helpful for outdoor spot,
special operations and indoor lighting such as Camping, navigation,hunting,
travel,adventure,maintenance,reading,fishing,military etc.

Specification
1,working volt:DC 3.7V-6V
2,battery: 3.7V2500mAh 18650 rechargeable battery*1or CR123 battery *2 (not included)
3,Constant current circuit
4,LED: XM-L U2 cool white LED

Mode	output (Lumen)	intensity (cd)	distance (m)	standard runtime (hrs)
high	577	1646	81	8
mid	231	676	52	18
low	24	90	17	60
SOS	577	NA	NA	NA


5,Impact resistance:1.5m
6,waterproof:IPX8
7,size:Φ31x105mm
8,weight:135g(w/o battery);


Main parts and material
case material/reflector--aluminum
lens-- tempered glass
inside part-PC

Caution
1.     Please protect the lens and lamp body from Scratching.
2.     If the headlamp has been OFF for a long time please take out the battery.


2014 New Models!Hot Sales!CREE Super Bright led head lamp H1LC

Specifications:



Lamp	CREE XM-L U2LED with lifespan of 100000hours
Max Brightness	577lumens
Output Levels	Four mode (Constant current circuit chip which maintains constant brightness)
Power Source	3.7V2500mAh 18650x1 or CR123 x2
Input Voltage	DC 3.7V-6V
Burn Time	12hours
Material	case material/reflector--aluminum
Len	tempered glass
Exterior Color	Black
size	Φ31x105mm
Throw Beam	81meters
Inside part	PC
Switch	unique design of USB charging LED indicator
Construction	Waterproof to IPX8 standard
Impact Resistant	Anti-drop height of 1.5 meters
Weight	135g(excluding batteries)
Accessories	Clamp&mounting bracket



Outines:
Working Voltage:DC 3.7V-6V
2,Battery: 3.7V2500mAh 18650x1 or CR123 x2.
Constant current circuit
LED: Cree XM-L U2 cool white LED
Impact resistance:1.5m
Waterproof:IPX8
Size:Φ31x95mm
Weight:139g(w/o battery);

Manual:
Camping, navigation,hunting,travel,adventure
,maintenance,reading,fishing,military

Unique magnetic switch,some can choose the light mode conveniently.
twirling switch on light head;High-med-low and SOS.
It runs with 18650 rechargeable battery or CR123 x2.
with mounting bracket and clamp,
can be used on head or waist.

 Led head lamp H1LC Accessories
1,3.7V2500mAh 18650rechargeable battery(optional)
2,mounting bracket
3,clamp

Main parts and material
case material/reflector--aluminum
lens--tempered glass
inside part-PC
